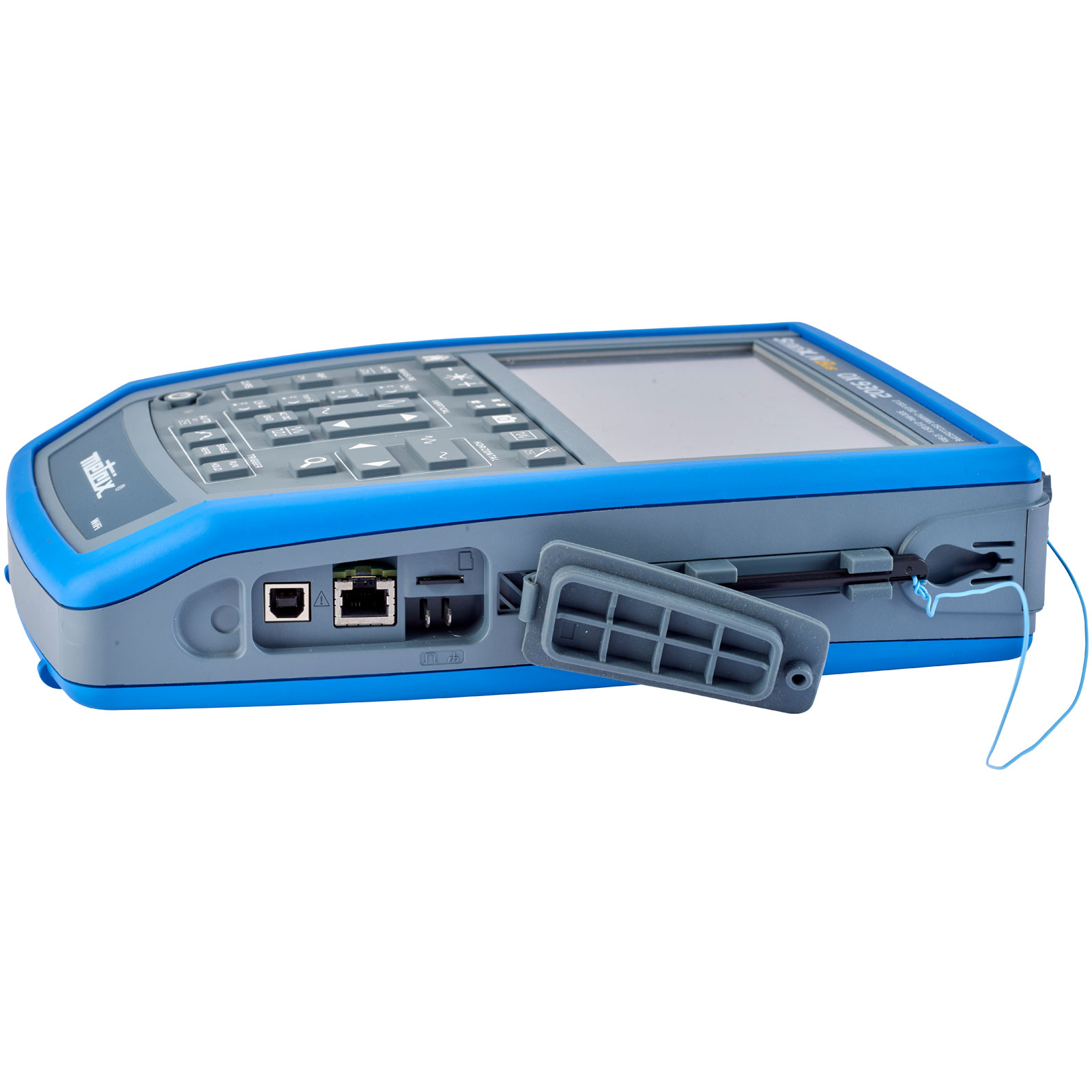

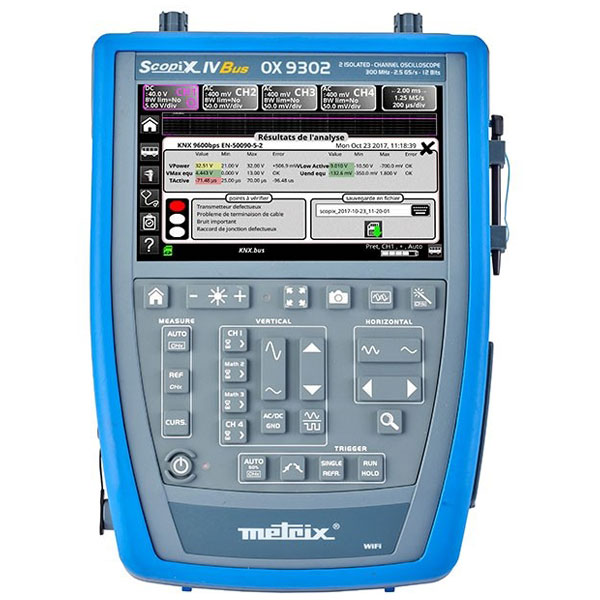

Chauvin Arnoux OX9302-BUS Scopix IV,Oscilloscope, 2 x 300Mhz BUS Chauvin Arnoux OX9302-BUS Scopix IV,Oscilloscope, 2 x 300Mhz BUS Chauvin Arnoux OX9302-BUS Scopix IV,Oscilloscope, 2 x 300Mhz BUS

Chauvin Arnoux OX9302-BUS Scopix IV,Oscilloscope, 2 x 300Mhz BUS

Order Code: 11-1795
MPN: OX9302-BUS
EAN-13: 3663653000239
Brand: Chauvin Arnoux
Sign In to submit the first review

  • Quickly find another product in this range by No. of Channels:

    2 4
Qty Was Ex VAT
1+ £6326.00   £5252.53
Standard factory lead time 4 weeksContact us for lead times on larger quantities
Available to back orderBack-order availability date - 19/06/2026

Used to perform the electrical measurements needed to assess the integrity of the fieldbuses, or in other words the operation of the physical layer, electrical specifications, synchronization, etc.Featuring four steps for quick simple diagnosis.

  • 7" WGA colour LCD screen (resolution 800 X 480) – Adjustment of brightness and contrast, Bandwidth 70 MHz / 100 MHz – 20 MHz bandwidth limiter, Bandwidth 25 MHz, Impedance 2 channels, common chassis-earths - 1 MΩ / 18 pF and External Trig channel, maximum sampling rate One-shot = 250 MS/s (2 channels), 500 MS/s (1 channel) 0 MS/s, repetitive = 10 Gé/s


No. of Channels 2
Bandwidth 300MHz
Type Oscilloscope
Screen Size 800 x 480 p
