| Qty | Ex VAT |
Pack Price
Per 50 Units |
|---|---|---|
| 50+ | £3.03 | £151.50 |

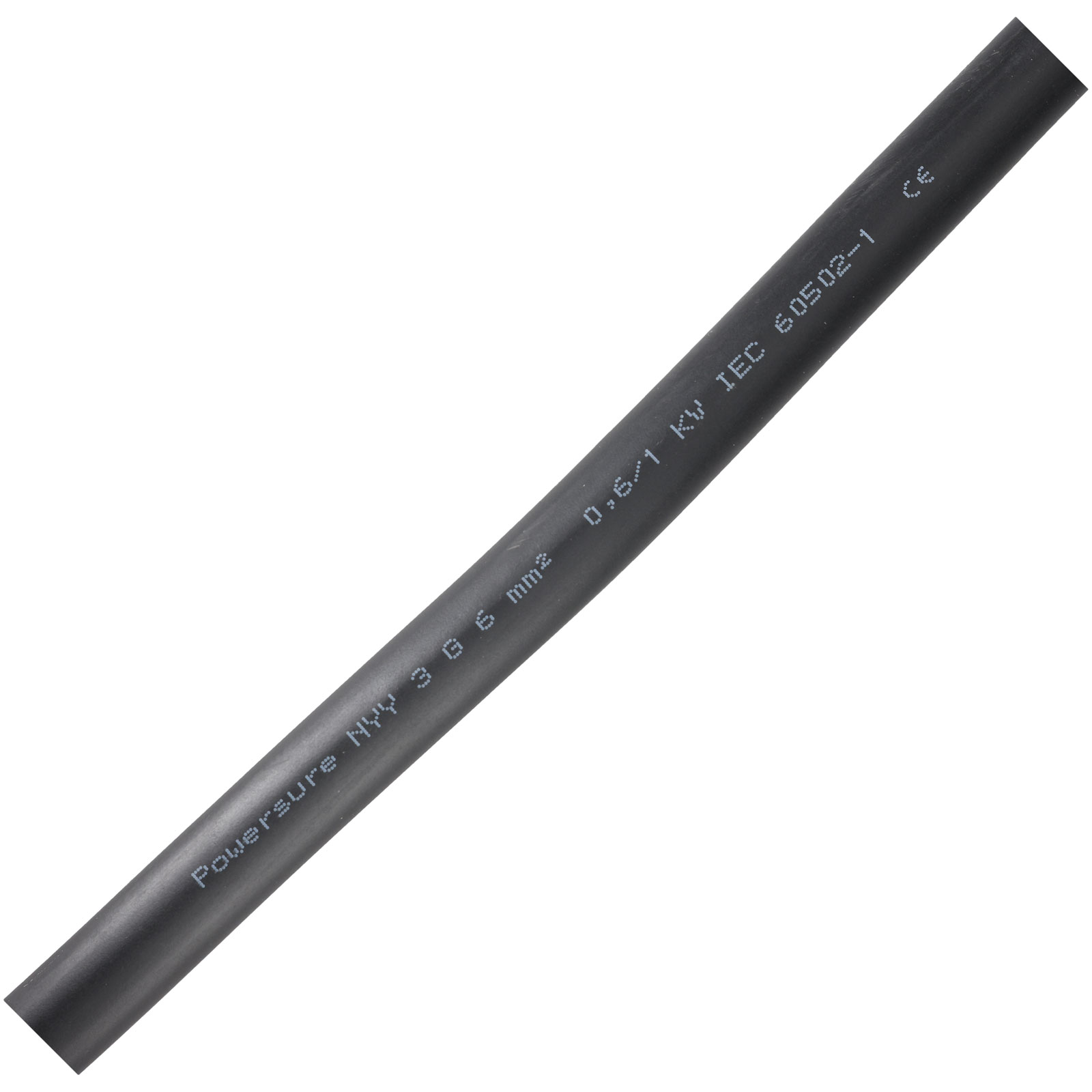

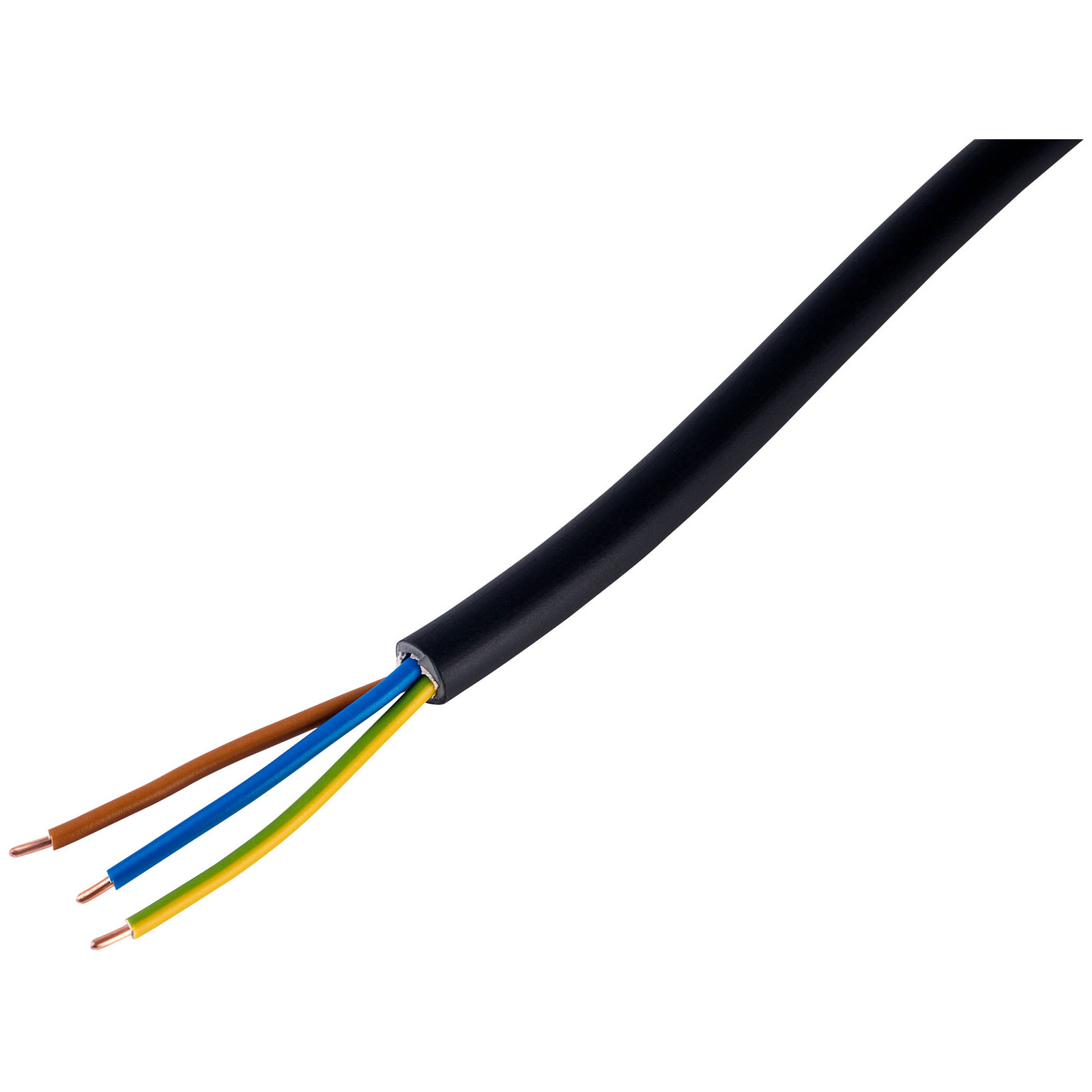

Manufactured to BS EN 60502-1. This Powersure® NYY-J, PVC Insulated and sheathed multicore cable is widely used for power and control for fixed wiring installations with a voltage rating of 600/1000V.
The cable can be safely deployed in most applications where mechanical stresses are not anticipated and is suitable for use both indoors and outdoors.
The black NYY cable has a UV-stabilised outer sheath making it suitable for direct exposure to sunlight.
Conductor: Plain Annealed Copper Class 1 Solid to BS EN 60228
Insulation: PVC
Bedding: PVC
Outer Sheath: Black PVC

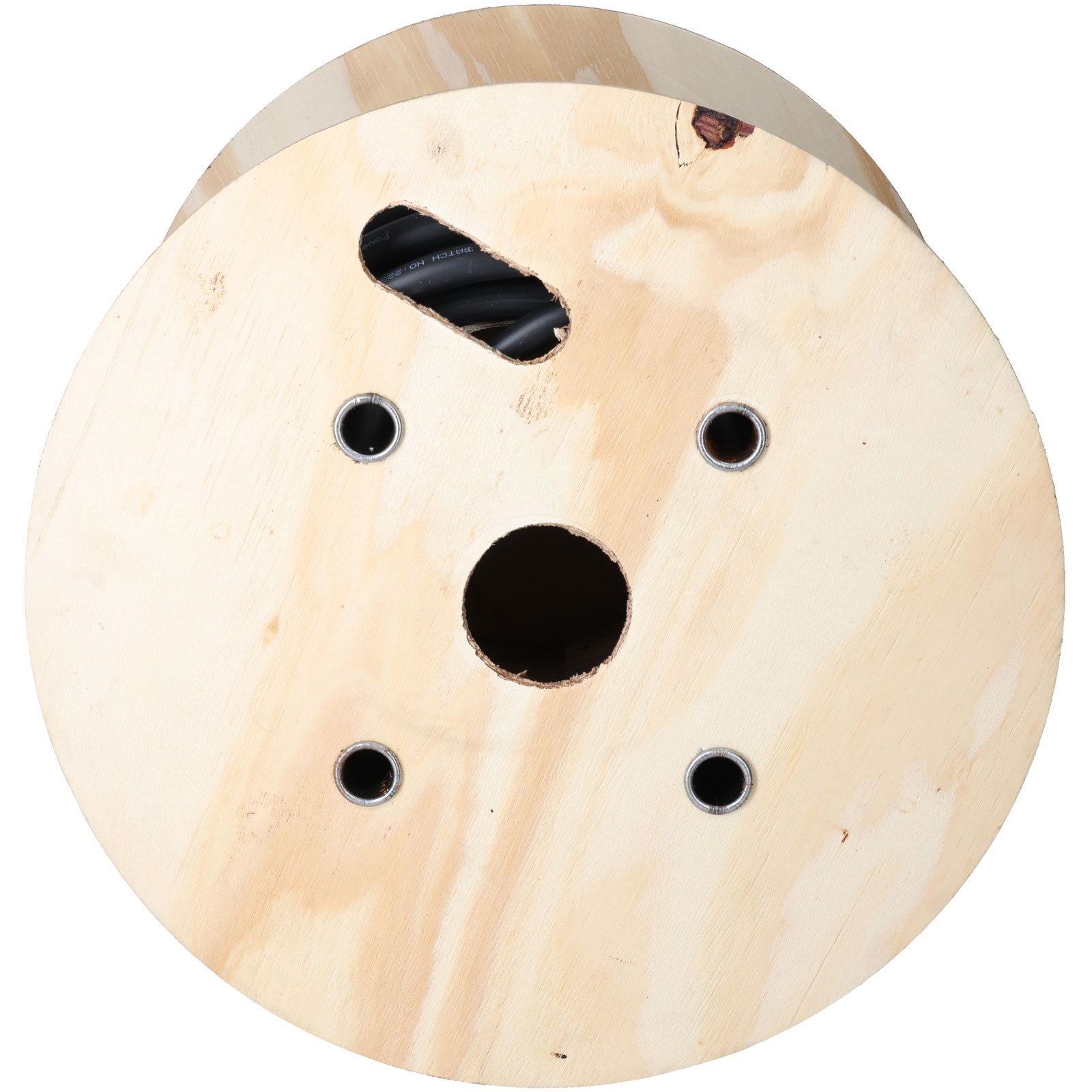

Supplied on Reels of 50m.
| Product Description: | NYY 3 Core 6.0mm² NYY J Cable |
| Order Code: | 02-1412 |
| Supplier Code: | NYY3C6.0 (50M Reels) |
| Number and Nominal CSA of Conductors: | 3 x 6.0mm² |
| Conductor Class to BS EN 60228: | Class 1 |
| Nominal Radial Thickness of Insulation: | 1.0mm |
| Nominal Radial Thickness of Sheath: | 1.8mm |
| Approximate Overall Diameter: | 14.7mm |
| Max Current Rating: |
For current ratings refer to table 4D2A and 4D2B of BS7671 |
| Voltage Drop: | 6.4 mV/A/m |
| Operating Temperature: | -15°C to 70°C |
| Supply Qty: | 50m Reel |
| Sheath Colour | Black |
|---|---|
| Insulation material | PVC |
| Voltage Rating | 600/1000V |
| Conductor Cross-section | 6mm² |
| Diameter | 14.7mm |
| No. of Cores | 3 |
| Sold by Metre | No |
| Sold by Reel Length | 50m |
| Type | Mains Cable |
