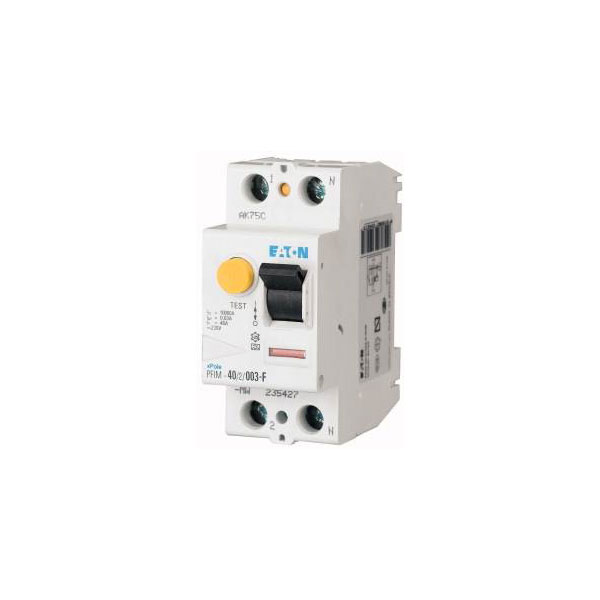

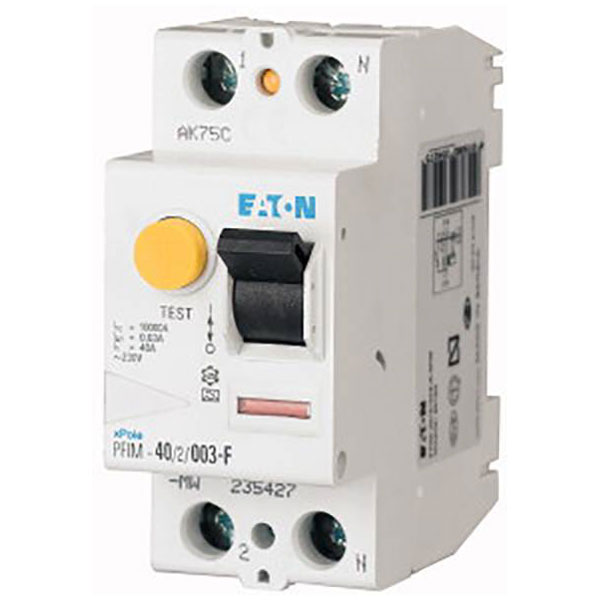

The Eaton 187450 PFIM-40/2/003-G/F RCCB is a residual-current circuit breaker designed to provide protection against electrical faults in mixed frequency bands. It features a 40 A current rating and a 0.03 A sensitivity at 230 V, ensuring reliable safety in residential or commercial electrical installations. Typical applications include safeguarding lighting circuits and small power circuits, preventing electric shocks and fire risks.
| Type |
RCCB |
| Current Rating |
40A |
| Voltage Rating - AC |
230V AC |
| Additional equipment possible |
TRUE |
| Ambient temperature during operating |
-25-60°C |
| Built-in depth |
70.5mm |
| Connectable conductor cross section multi-wired |
1.5-16mm² |
| Connectable conductor cross section solid-core |
1.5-35mm² |
| Current Ratng |
0.03A |
| Degree of protection (IP) |
IP20 |
| Depth |
70.50mm |
| Differential current rating |
0.03A |
| Dim |
(L x W) 80 mm x 35 mm |
| Explosion-proof |
FALSE |
| Factory colour |
White |
| Frequency |
50 Hz |
| Leakage current type |
Other |
| Length |
80mm |
| Model |
for mixed frequency bands |
| Mounting method |
DIN rail |
| Number of Pins |
2 |
| Number of Poles |
2 |
| Pollution degree |
2 |
| RAL-number (similar) |
7035 |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
440V |
| Release characteristics |
G/F |
| Selective protection |
FALSE |
| Short-circuit breaking capacity (Icw) |
10kA |
| Short-time delayed tripping |
TRUE |
| Surge current capacity |
3kA |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Weight |
0 |
| Width |
35mm |
| Width in number of modular spacings |
2 |
| With interlocking device |
TRUE |
