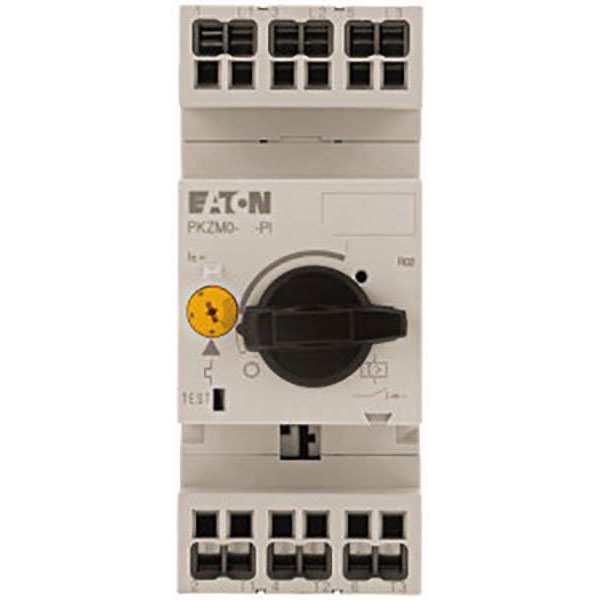

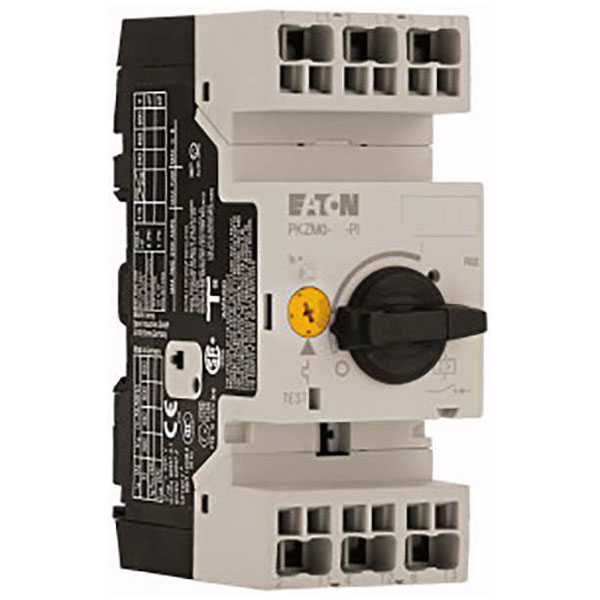

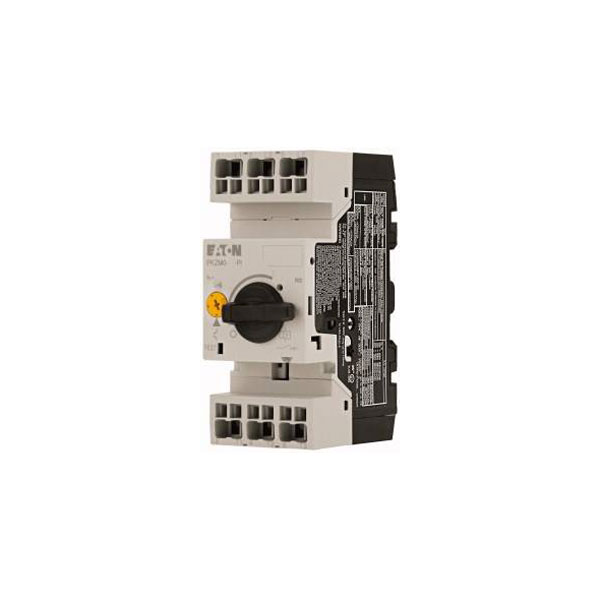

Eaton's 199153 overload relay is designed for use with AC voltages up to 690 V and provides protection at a current rating of 1.6 A. This device is well-suited for safeguarding motors and preventing overload conditions in electrical circuits. It is typically utilised in industrial and commercial settings to enhance circuit safety and reliability.
| Type |
Overload relay |
| Connection |
Push-in connector |
| Dim |
(L x W x H) 75 x 45 x 109 mm |
| Durability |
0.1 x 106 |
| Height |
109mm |
| Length |
75mm |
| Max. temperature |
+55°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
PKZM0-1,6-PI |
| Misc Attribute 2 |
3-pin |
| RoHS-compliant |
Yes |
| Switching current (max.) |
1.6A |
| Switching current (min.) |
1A |
| Switching voltage |
690V AC |
| Width |
45mm |
