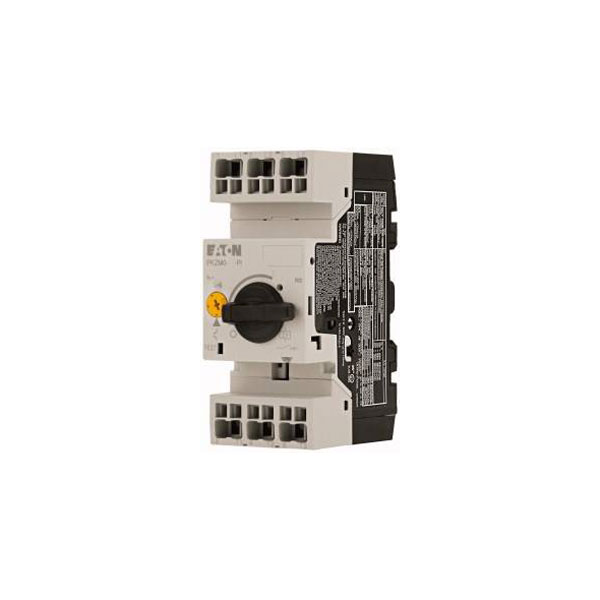

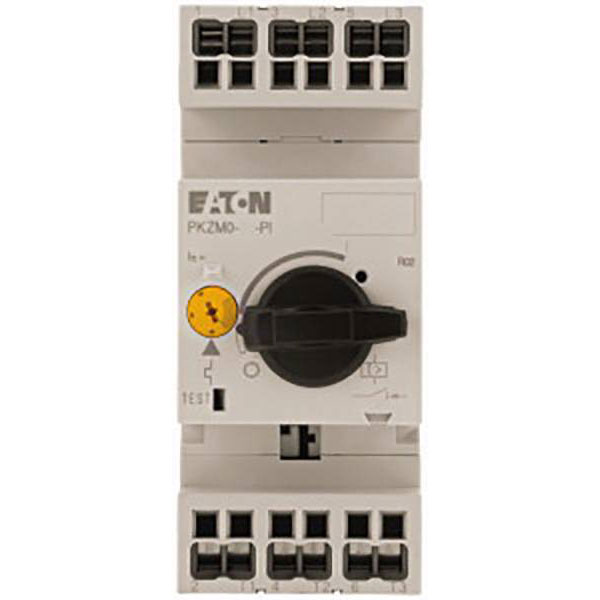

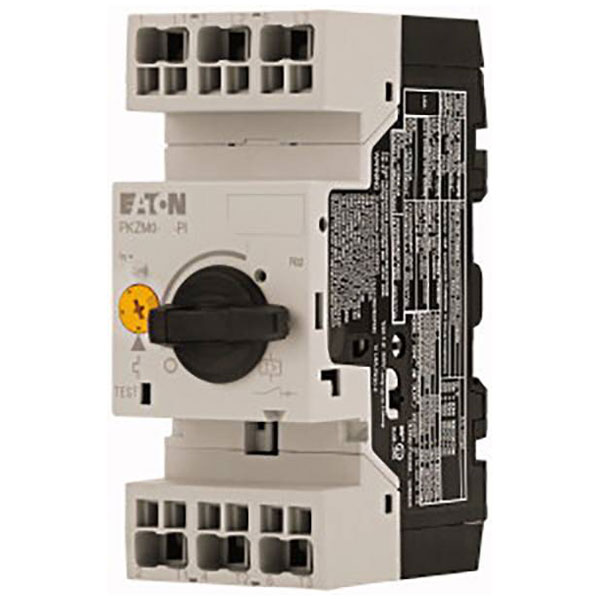

The Eaton PKZM0-6,3-PI is an overload relay designed for use in electrical circuits with a maximum of 690 V AC and a current rating of 6.3 A. It provides protection to electrical motors by interrupting electrical flow in case of overload, ensuring safety and reliable operation. This device is typically used in industrial applications where circuit protection is crucial.
| Type |
Overload relay |
| Connection |
Push-in connector |
| Dim |
(L x W x H) 75 x 45 x 109 mm |
| Durability |
0.1 x 106 |
| Height |
109mm |
| Length |
75mm |
| Max. temperature |
+55°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
PKZM0-6,3-PI |
| Misc Attribute 2 |
3-pin |
| RoHS-compliant |
Yes |
| Switching current (max.) |
6.3A |
| Switching current (min.) |
4A |
| Switching voltage |
690V AC |
| Width |
45mm |
