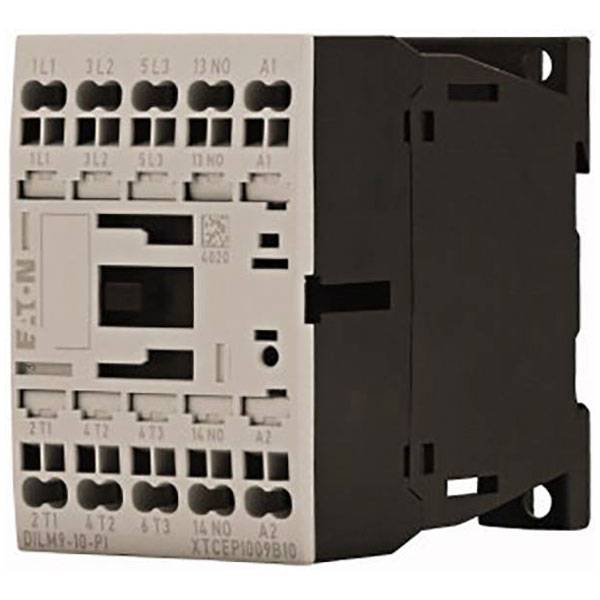

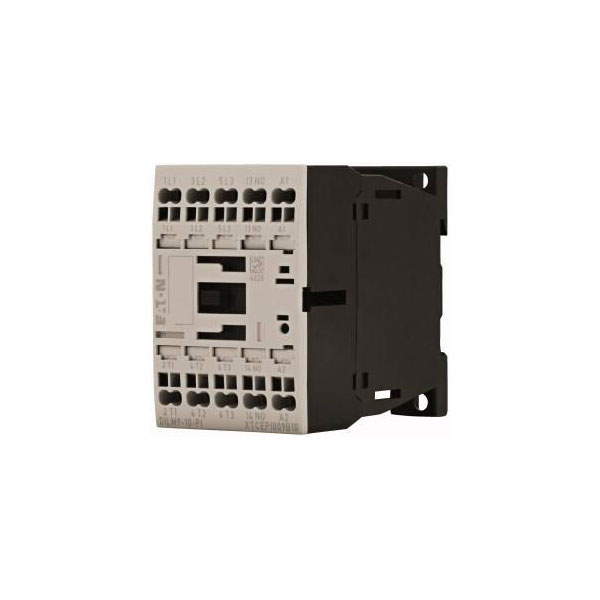

Eaton's DILM9-10(24VDC)-PI electrical contactor is designed for efficiency in motor control applications, supporting up to 4 kW and 9 A. This compact contactor is ideal for systems requiring reliable operation with a 24V DC coil. Typically used in industrial and commercial settings, it ensures effective motor starting and stopping.
| Type |
Electrical contactor |
| Coil Voltage |
24V DC |
| Auxiliary contact type |
1 maker |
| Connection |
Push-in connector |
| Contact Current Rating |
4 A |
| Contact Type |
3 makers |
| Control voltage (max.) |
24V AC |
| Control voltage range |
24 V AC (max) |
| Current load |
9A |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
DILM9-10(24VDC)-PI |
| Mounting Style |
DIN rail |
| Power |
4kW |
| Power Rating |
4 |
| Terminals |
Push-in connector |
