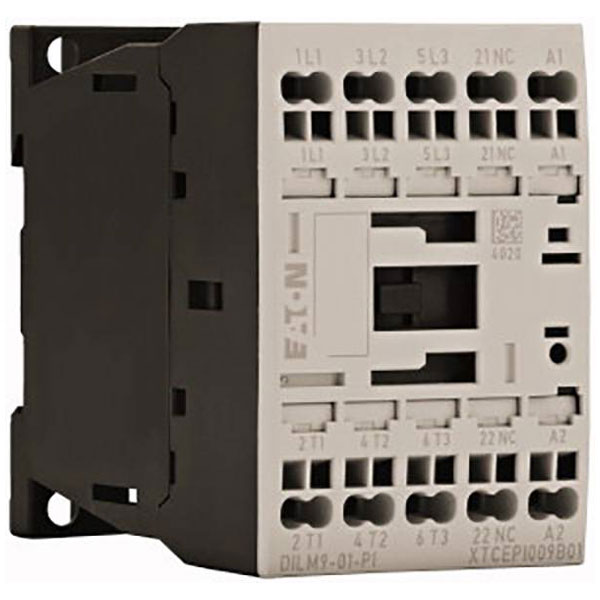

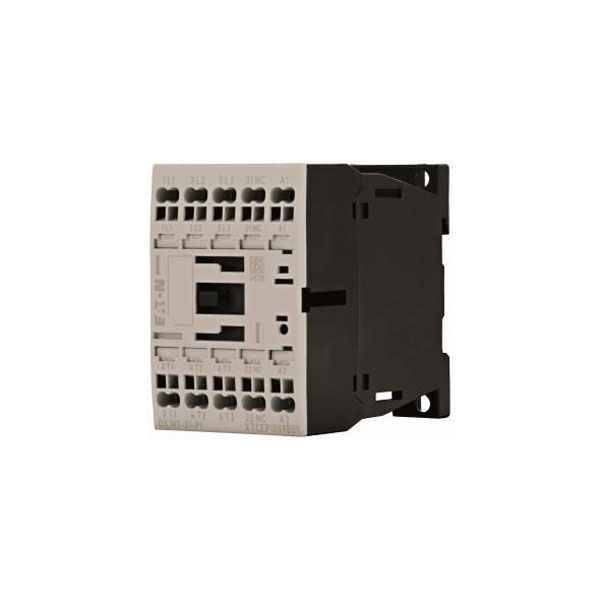

The Eaton DILM9-01(24VDC)-PI is an electrical contactor designed for use with circuits up to 4 kW and 9 A. This contactor features 3 normally open contacts and operates on a 24 V DC coil. It is commonly used in industrial automation and machine control applications.
| Type |
Electrical contactor |
| Coil Voltage |
24V DC |
| Contact Current Rating |
9A |
| Power Rating |
4 |
| Auxiliary contact type |
1 breaker |
| Connection |
Push-in connector |
| Contact Type |
3 makers |
| Control voltage (max.) |
24V AC |
| Control voltage range |
24 V AC (max) |
| Current load |
9A |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
DILM9-01(24VDC)-PI |
| Mounting Style |
DIN rail |
| Power |
4kW |
| Terminals |
Push-in connector |
