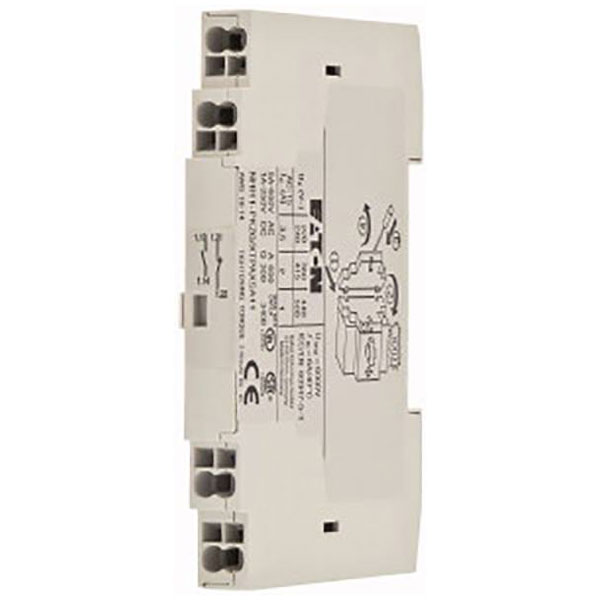

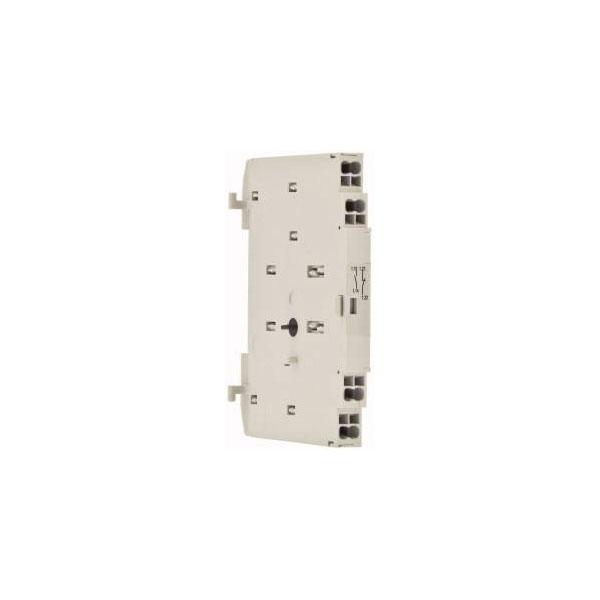

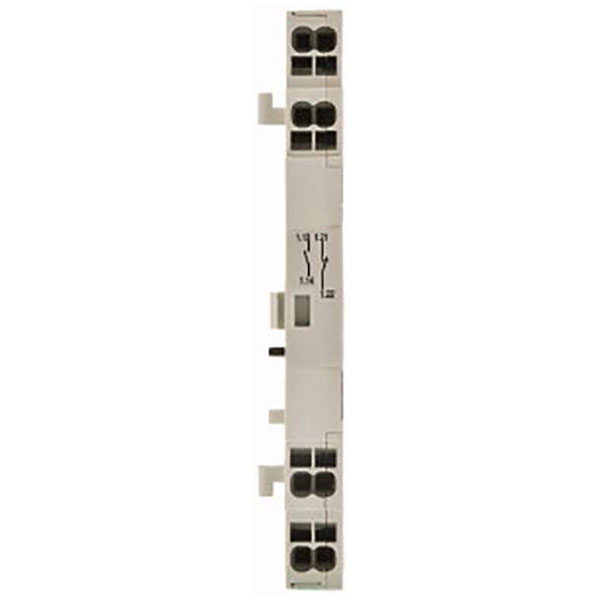

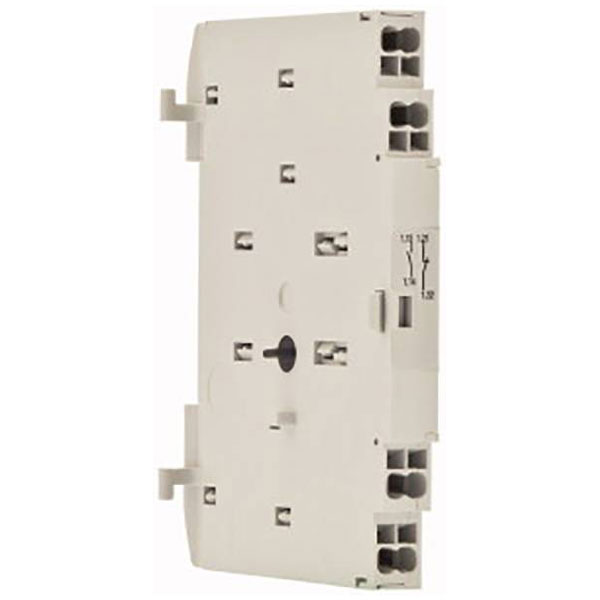

Eaton manufactures the NHI11-PKZ0-PI auxiliary switch, rated at 240 V AC and 3.5 A. This switch is designed to enhance control in safety applications and is typically used with breakers. The product is suitable for industrial environments, ensuring effective circuit management.
| Type |
Auxiliary switch |
| Connection |
Push-in connector |
| Dim |
(W x H) 9 mm x 90 mm |
| Height |
90mm |
| Max. temperature |
+55°C |
| Min. temperature |
-25°C |
| Misc Attribute |
NHI11-PKZ0-PI |
| RoHS-compliant |
Yes |
| Switching current (max.) |
3.5A |
| Switching current (min.) |
0.25A |
| Switching voltage |
240V AC |
| Width |
9mm |
