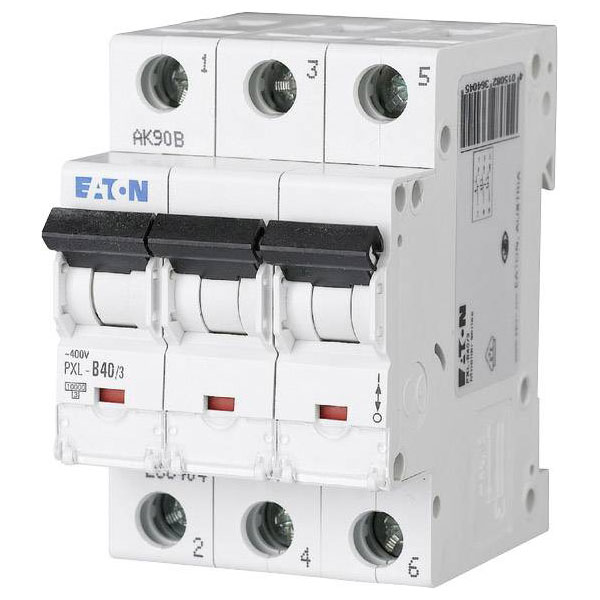

Eaton 236404 PXL Circuit breaker 3-pin 40A 400V AC LS-switch B40A 3P

Order Code: 02-6335
MPN: 236404
EAN-13: 4015082364045
Brand: Eaton
Sign In to submit the first review
Qty Inc VAT
1+ £58.78
3 in stock, despatched in 4 working days

The Eaton 236404 circuit breaker is a 3-pin device rated for 40 A and 400 V AC. It is designed to provide reliable overcurrent protection in electrical systems. Typical applications include residential or commercial electrical installations and panel boards.


Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -25-55°C
Built-in depth 70.5mm
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 1-25mm²
Connectable conductor cross section solid-core 1-25mm²
Current limiting class 3
Degree of protection (IP) IP20
Depth 70.5mm
Explosion-proof FALSE
Flush-mounted installation FALSE
Frequency 50-60Hz
Misc Attribute Switchgear for domestic and commercial applications
Nominal current 40A
Nominal current - rounded value 40A
Nominal voltage 400V AC
Number of pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 3
Pollution degree 2
Power loss 11.2W
Rated Current 40A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 0kA
Rated voltage 400V
Release characteristic B
Release characteristics B
Switch-off capacity 10kA
Voltage type AC
Weight 0
Width in number of modular spacings 3
