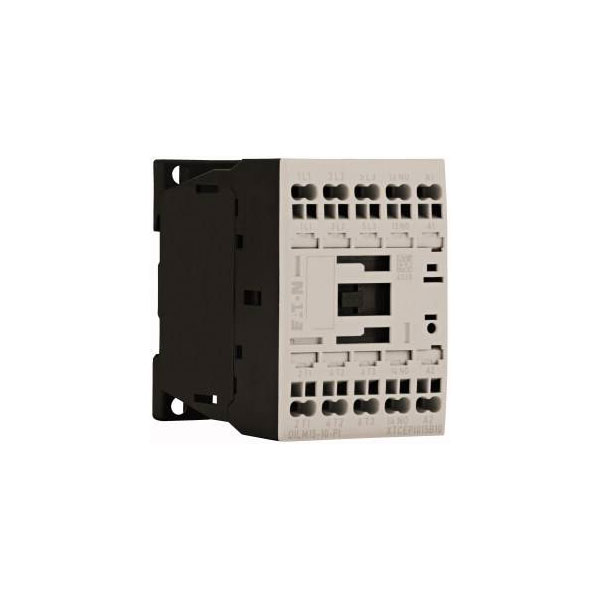

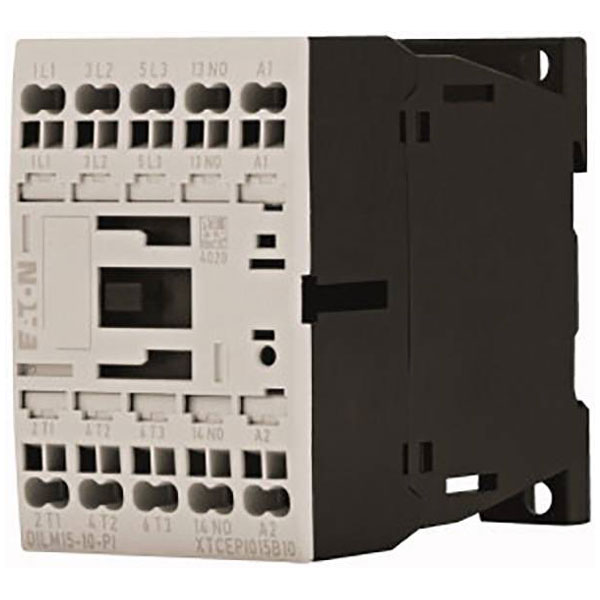

Eaton's DILM15-10 electrical contactor is designed for controlling circuits with a maximum power of 7.5 kW and a current rating of 15 A. It operates at voltages of 230V at 50Hz and 240V at 60Hz. Typically used in industrial and commercial applications, it provides reliable switching for motors and other high-power equipment.
| Type |
Electrical contactor |
| Coil Voltage |
230 V/240V AC |
| Auxiliary contact type |
1 maker |
| Connection |
Push-in connector |
| Contact Current Rating |
15A |
| Contact Type |
3 makers |
| Control voltage range |
110, 110 - 250, 250 V DC, V AC |
| Current load |
15A |
| Maximum Temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
DILM15-10(230V50HZ,240V60HZ)-PI |
| Mounting Style |
DIN rail |
| Power |
7.5kW |
| Power Rating |
7.5 |
| Terminals |
Push-in connector |
