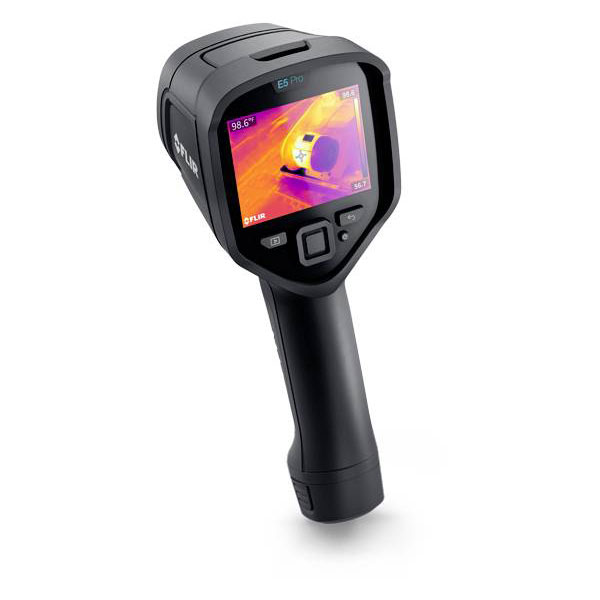

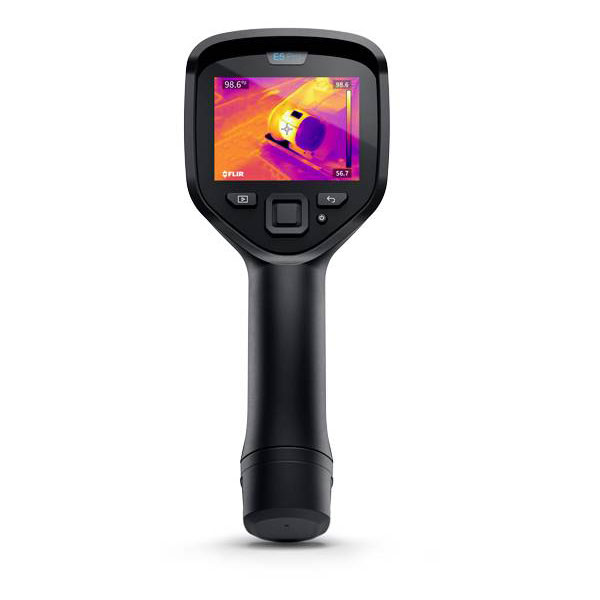

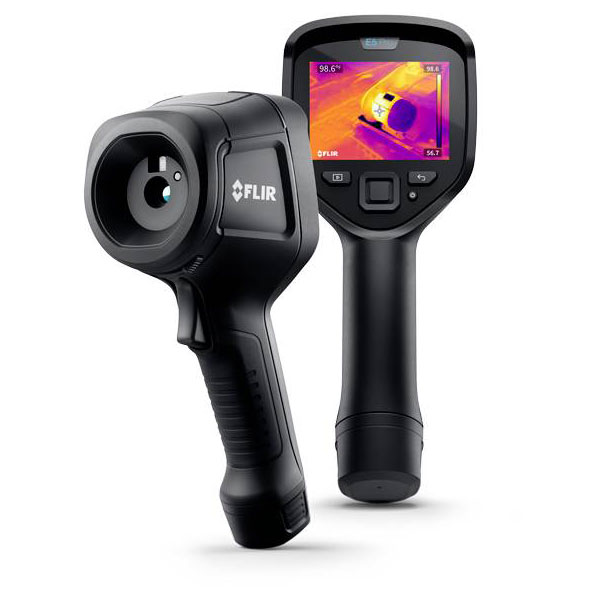

With the FLIR E5 Pro infrared camera with 160x120 IR resolution and Ignite cloud you can see moisture damage, heat loss, electrical, mechanical and other thermal problems clearly and clearly - with an optics that is always in focus and a large, sharp 640x480 touch-screen. Save time by connecting to the cloud to automatically save, edit, and share images in FLIR Ignite or Thermal Studio. OTA (Over The Air) updates ensure that your camera is always equipped with the latest features. The FLIR MSX image enhancement provides extraordinary thermal detail with a visual 5 MP camera and an LED lamp for improved decision support. Simplify your workflow by using the touchscreen to pan, zoom, and add comments to images that are automatically inserted into reports. Robust, reliable yet lightweight design for one-handed image capture.
| Type |
IR camera |
| Resolution |
640 x 480 Pixel |
| Accuracy ± °C |
2°C |
| Basic Accuracy |
2 % |
| Dimensions |
(L x W x H) 244 x 95 x 140 mm |
| Display |
Colour LCD |
| Display Size |
3.5in |
| Focus |
Automatic |
| Frame rate |
9hz |
| Height |
140mm |
| IP Rating |
IP54 |
| Length |
244mm |
| Min. focusing distance |
0.36m |
| Optics |
33 x 25° |
| Temperature Measurement Range |
-20 to 550°C |
| Temperature reading range (max.) |
550°C |
| Temperature reading range (min.) |
-20°C |
| Thermal Sensitivity |
60 mK |
| Weight |
590 g |
| Width |
95mm |
