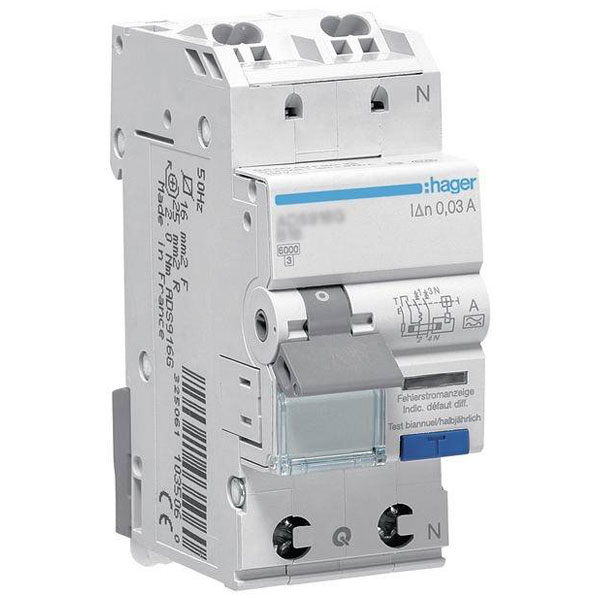

Hager's ADS916D RCBO is a 2-pin device rated at 16 A with a 0.03 A residual current for enhanced electrical safety. It is suitable for use in residential and commercial electrical circuits running on 240 V. The Hager ADS916D RCBO helps protect against overloads, short circuits, and earth faults.
| Ambient temperature during operating |
-25 - 40°C |
| Anti-nuisance tripping version |
false |
| Built-in depth |
68mm |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
N/A |
| Connectable conductor cross section solid-core |
N/A |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Differential current rating |
0.03A |
| Disconnection characteristic |
Undelayed |
| Flush-mounted installation |
true |
| Frequency |
50 Hz |
| Leakage current type |
A |
| Nominal Current |
16A |
| Nominal current - rounded value |
16A |
| Nominal Voltage |
240V |
| Number of Pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
5.20W |
| Rated current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity according to EN 61009 |
N/A |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6kA |
| Rated voltage |
240V |
| Release characteristic |
B |
| Release characteristics |
B |
| Surge current capacity |
0.25kA |
| Switch-off Capacity |
6kA |
| Type |
RCBO |
| Voltage type |
AC |
| Width in number of modular spacings |
2 |
| With interlocking device |
true |
