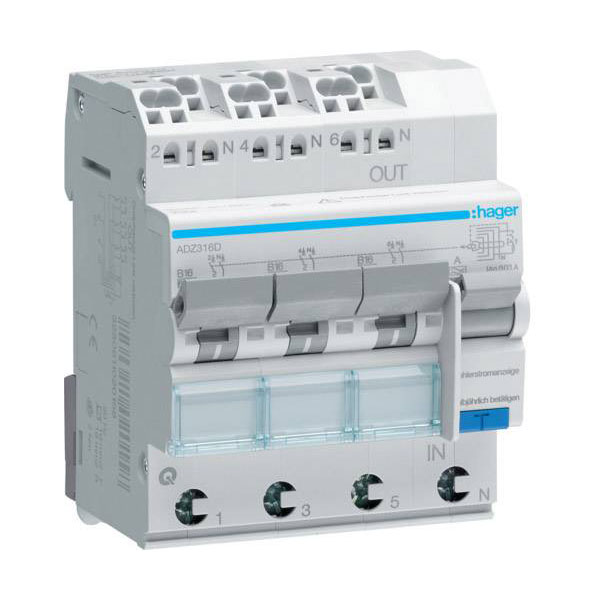

The Hager ADZ316D RCCB is a 3-phase 3-pin residual current circuit breaker with a rating of 16 A and 0.03 A sensitivity for fault detection. Manufactured by Hager, it operates at 230 V and provides essential protection against electrical leakage and faults. It is typically used in commercial and industrial settings to enhance electrical safety.
| Ambient temperature during operating |
-25 - 70°C |
| Anti-nuisance tripping version |
false |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
true |
| Connectable conductor cross section multi-wired |
N/A |
| Connectable conductor cross section solid-core |
N/A |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP2X |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 71 x 86 x 70 mm |
| Disconnection characteristic |
Undelayed |
| Flush-mounted installation |
true |
| Frequency |
50 Hz |
| Height |
86mm |
| Leakage current type |
A |
| Model |
3-phase |
| Nominal Current |
16A |
| Nominal current - rounded value |
16A |
| Nominal Voltage |
230V |
| Number of poles (total) |
4 |
| Number of protected poles |
3 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
10.9W |
| Rated current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity according to EN 61009 |
N/A |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6kA |
| Rated voltage |
230V |
| Release characteristic |
B |
| Release characteristics |
B |
| Surge current capacity |
3kA |
| Switch-off Capacity |
6kA |
| Type |
RCCB |
| Voltage type |
AC |
| Weight |
0 |
| Width |
71mm |
| Width in number of modular spacings |
4 |
| With interlocking device |
true |
