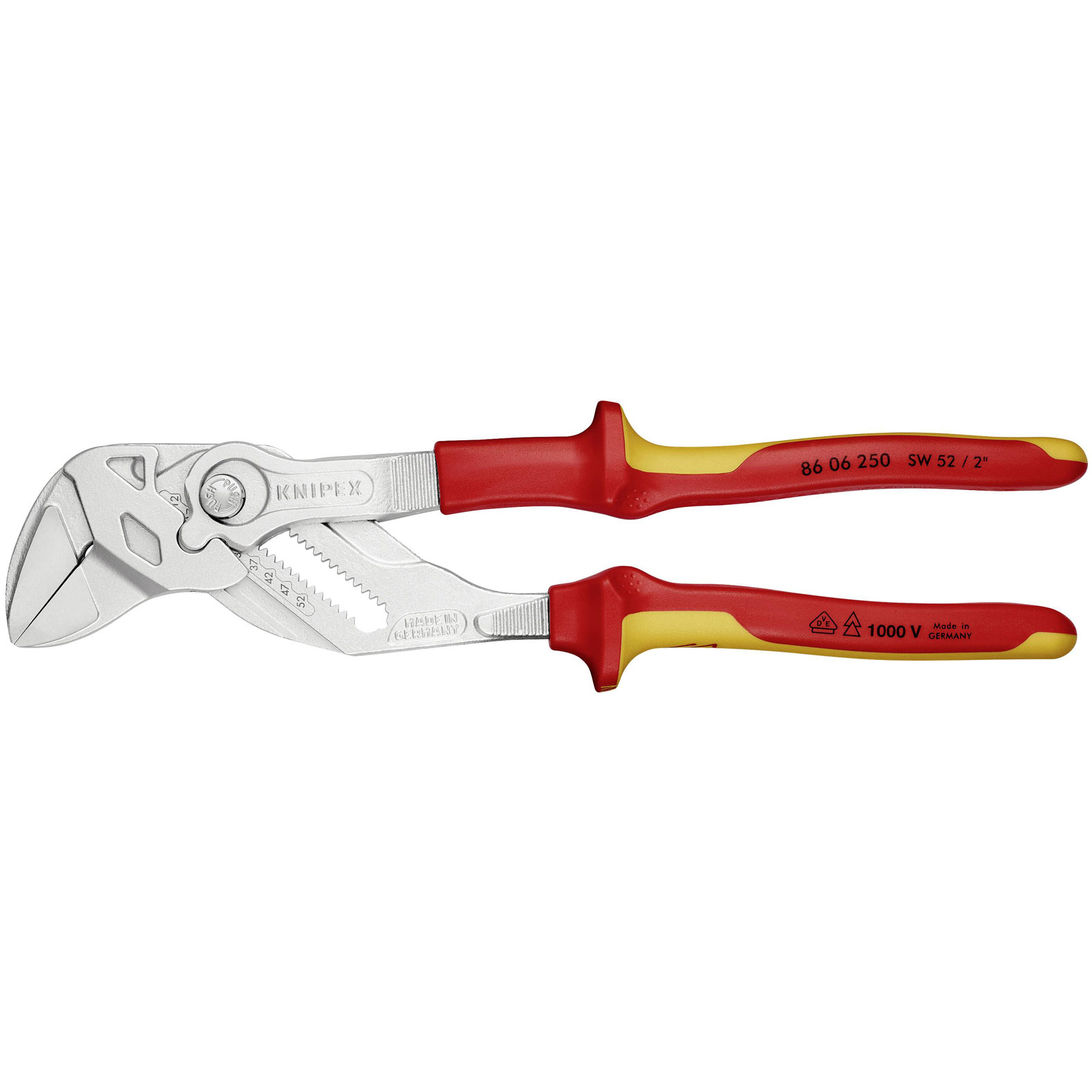

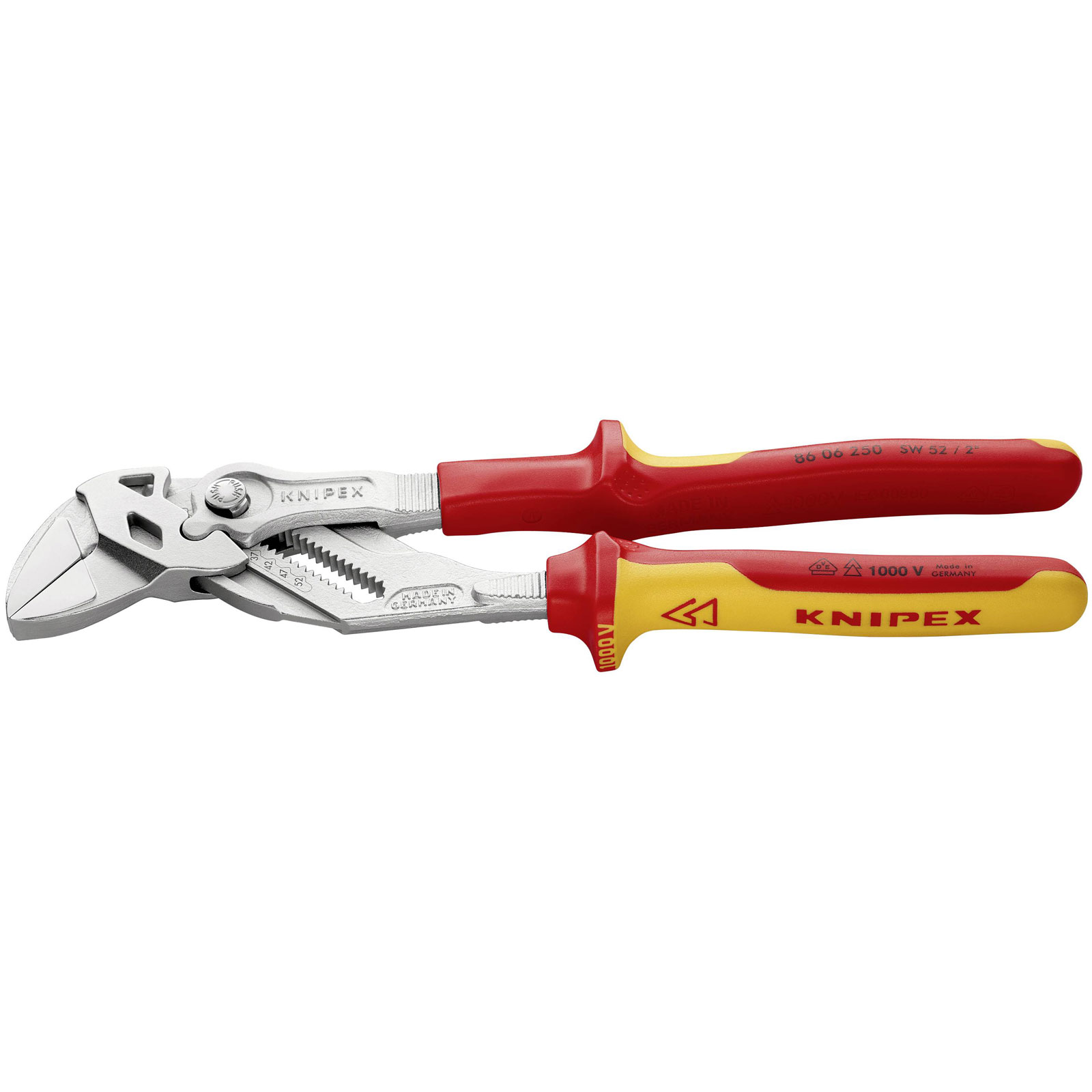

86 06 250 Pliers Wrench

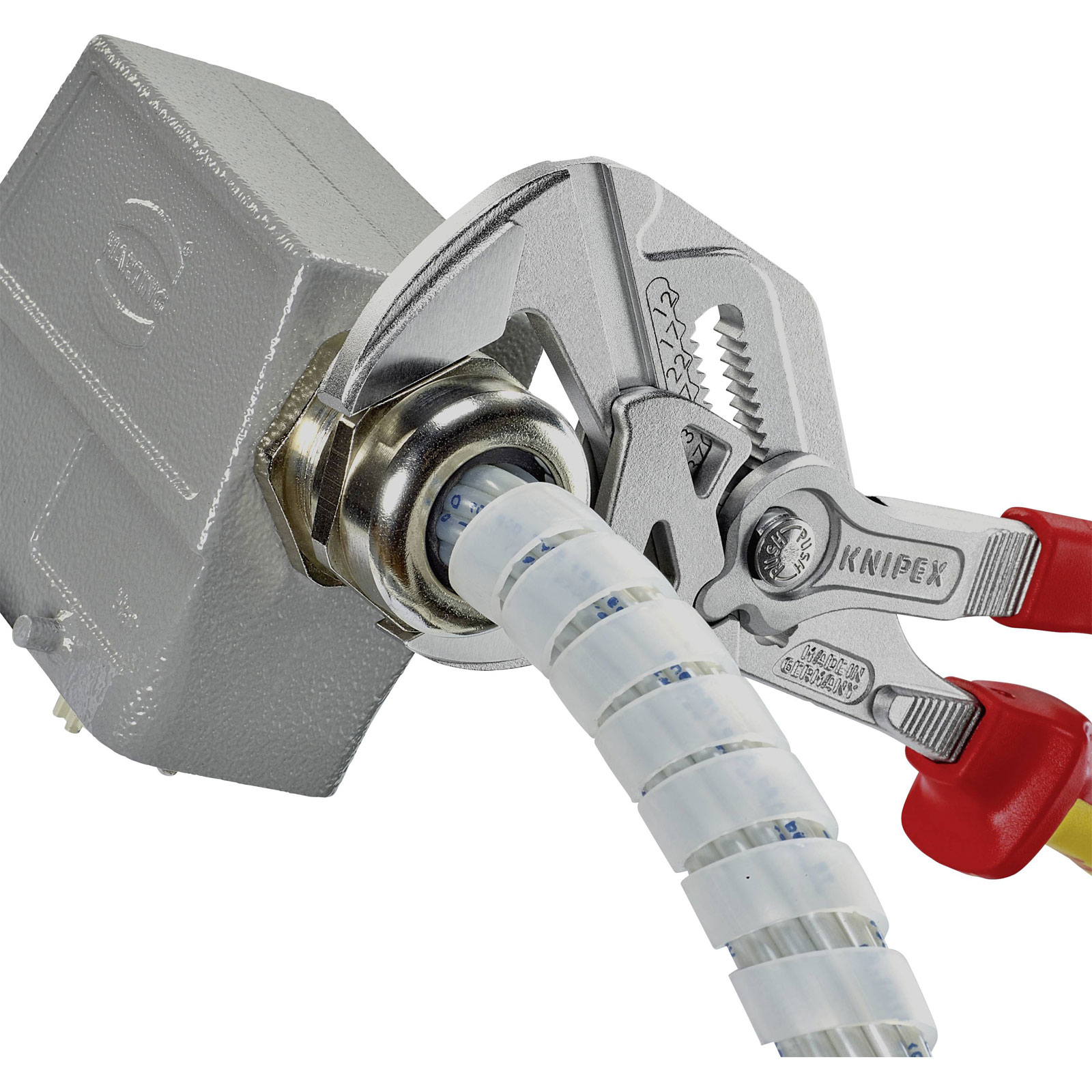

replaces the need for sets of metric and imperial spanners. smooth jaws for damage free installation of plated fittings - working directly on chrome!. Using laser-cut scales, the insulated KNIPEX pliers wrench can be set to the right wrench size for work on electrical systems away from the workpiece to be gripped Great for gripping, holding, pressing and bending workpieces. Zero backlash jaw pressure prevents damage to edges of sensitive surfaces. No unintentional shift of the gripping jaws and no slipping of the joint. Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size. The ratchet type principle allows quick and easy tightening and release of all bolted connections. High lever transmission for strong gripping power.
Jaw thickness (joint) (B2): 8.0 mmJoint thickness (B3): 14.0 mmTips thickness (B1): 8.0 mmadjustment positions: 19Capacities for nuts: Ø 2Capacities for nuts: 52 mm
Type |
Multigrip pliers |
Dim |
(L x W) 250 mm x 75 mm |
Length |
250mm |
Material |
Chromium-vanadium electric furnace steel |
Material properties |
chrome plated |
Positon |
19 |
Rack size |
483 mm (19") |
Range (in inches) |
2" |
Spanner size |
52mm |
Weight |
515g |
Width |
75mm |
