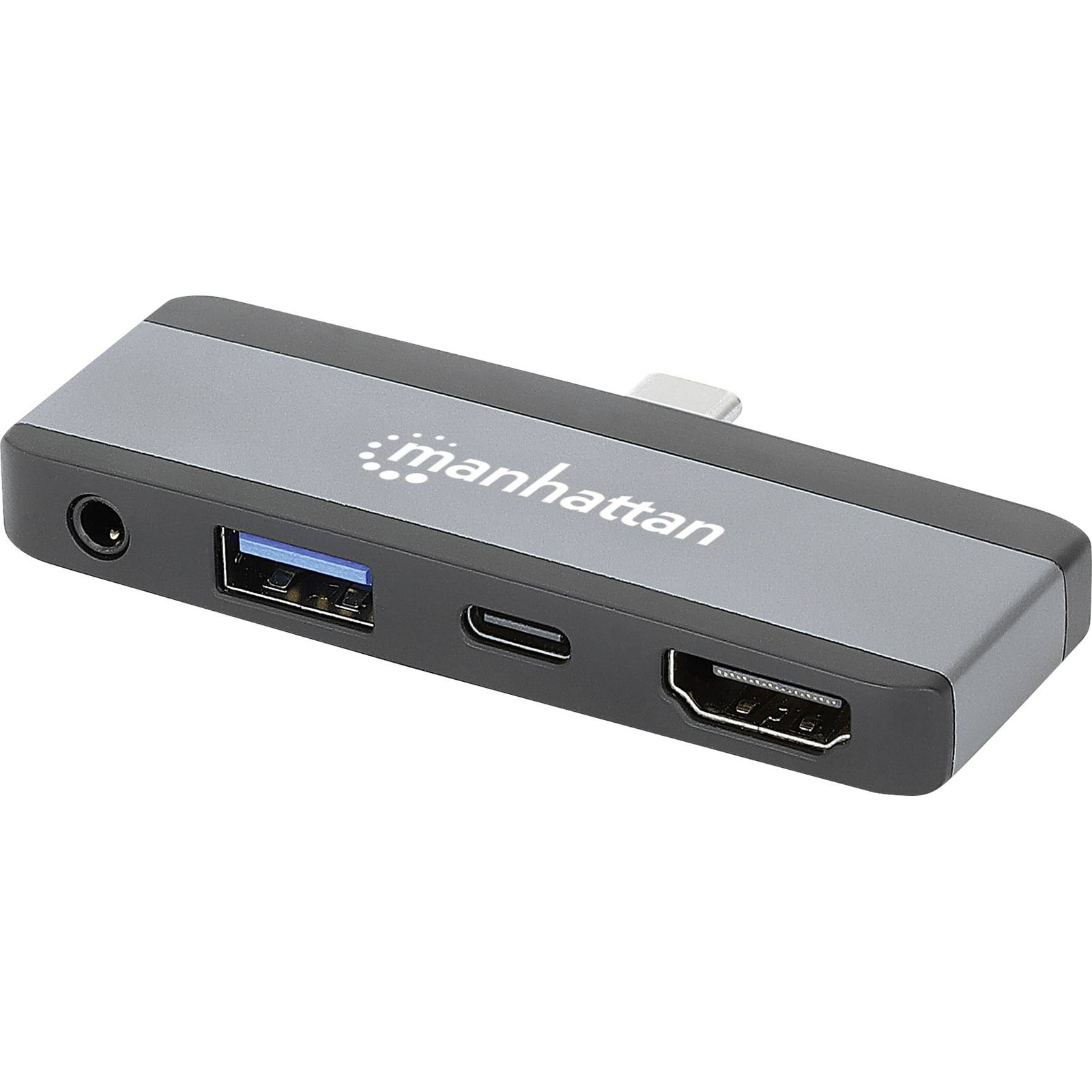

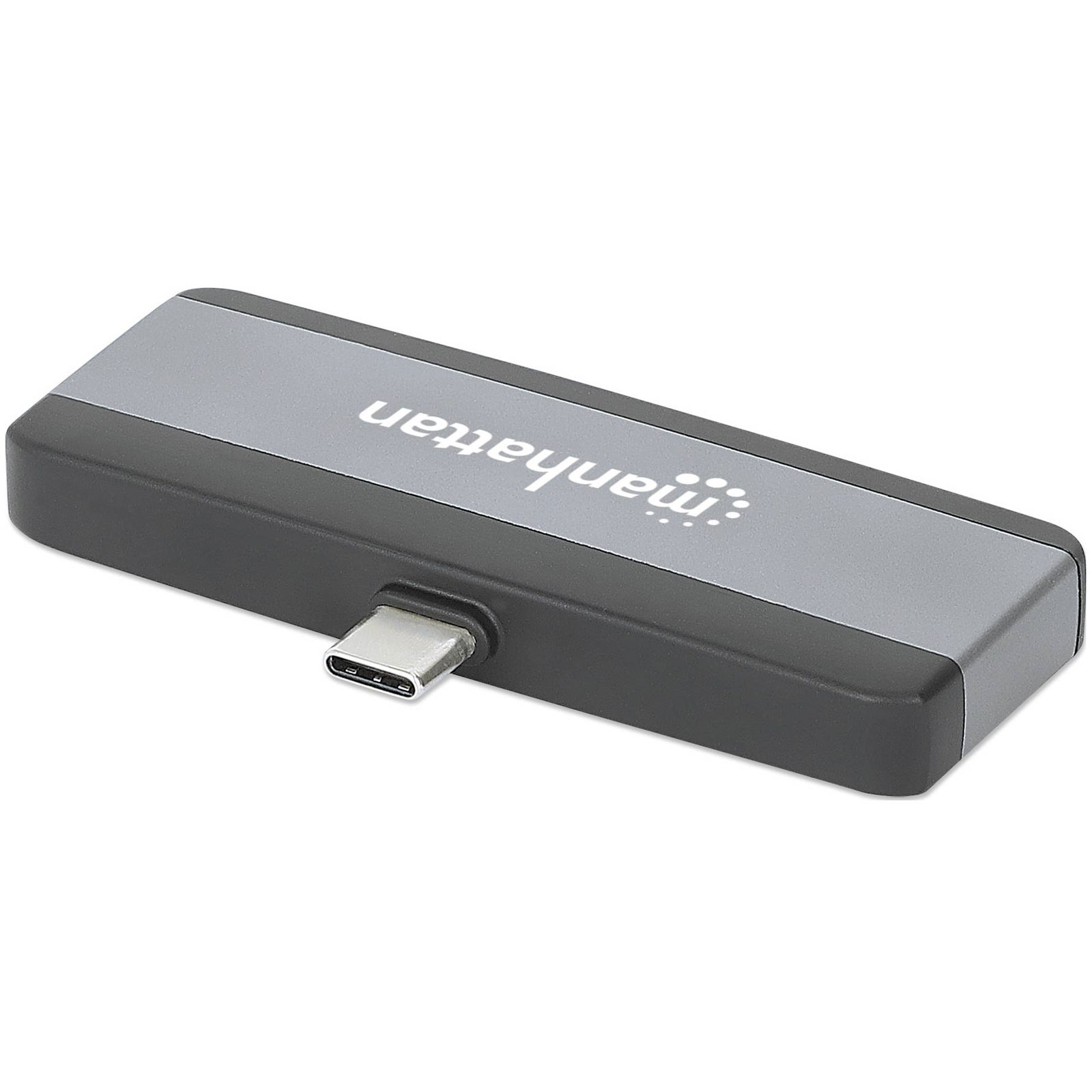

Manhattan 190404 is a versatile USB-C docking station that serves as an essential component within the Displays, Mounts & Docking Stations category. This docking station enables seamless connectivity by transforming a single USB-C input into multiple output options, including HDMI, USB-A, USB-C Power Delivery, and a 3.5 mm audio jack. It is engineered to support high-definition video output via HDMI, providing compatibility with modern displays for efficient video conferencing or presentations. The inclusion of USB Power Delivery allows for simultaneous charging of devices, adding value in environments where space and port availability are limited. Such a device is integral to engineering applications where connectivity and power delivery are crucial, such as in computing workstations or portable offices, enhancing both productivity and functionality through streamlined interface management.
| Card reader integrated |
No |
| Combo headphone/mic port |
Yes |
| Compliance certificates |
UKCA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Connectivity technology |
Wired |
| Data transfer rate |
10 Gbit/s |
| Depth |
77mm |
| Dimensions |
(W x H x D) 28 x 10 x 77 mm |
| DisplayPort version |
1.2 |
| Ethernet LAN |
No |
| HD type |
4K Ultra HD |
| HDCP |
Yes |
| HDCP version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Height |
10mm |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Housing Material |
Aluminium |
| Mac operating systems supported |
Yes |
| Master (outer) case gross weight |
4.5 kg |
| Master (outer) case height |
185 mm |
| Master (outer) case length |
540 mm |
| Master (outer) case width |
300 mm |
| Maximum digital resolution |
3840 x 2160 pixels |
| Mobile operating systems supported |
Android, iOS, iPadOS |
| Operating relative humidity (H-H) |
0 - 85% |
| Operating temperature (T-T) |
0 - 50 °C |
| Other operating systems supported |
ChromeOS |
| Package depth |
120 mm |
| Package height |
20 mm |
| Package weight |
30 g |
| Package width |
80 mm |
| Power source type |
USB |
| Product colour |
Grey |
| Product Type |
USB-C® docking station |
| Products per master (outer) case |
100 pc(s) |
| Resolution (max.) |
3840 x 2160 p |
| Screen size diagonal (inches) |
1inch |
| Supported monitors |
1 |
| Type |
USB-C® plug |
| Type A |
USB-C® plug |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| User guide |
Yes |
| Weight |
21g |
| Width |
28mm |
