| Qty | Ex VAT |
|---|---|
| 1+ | £970.00 |

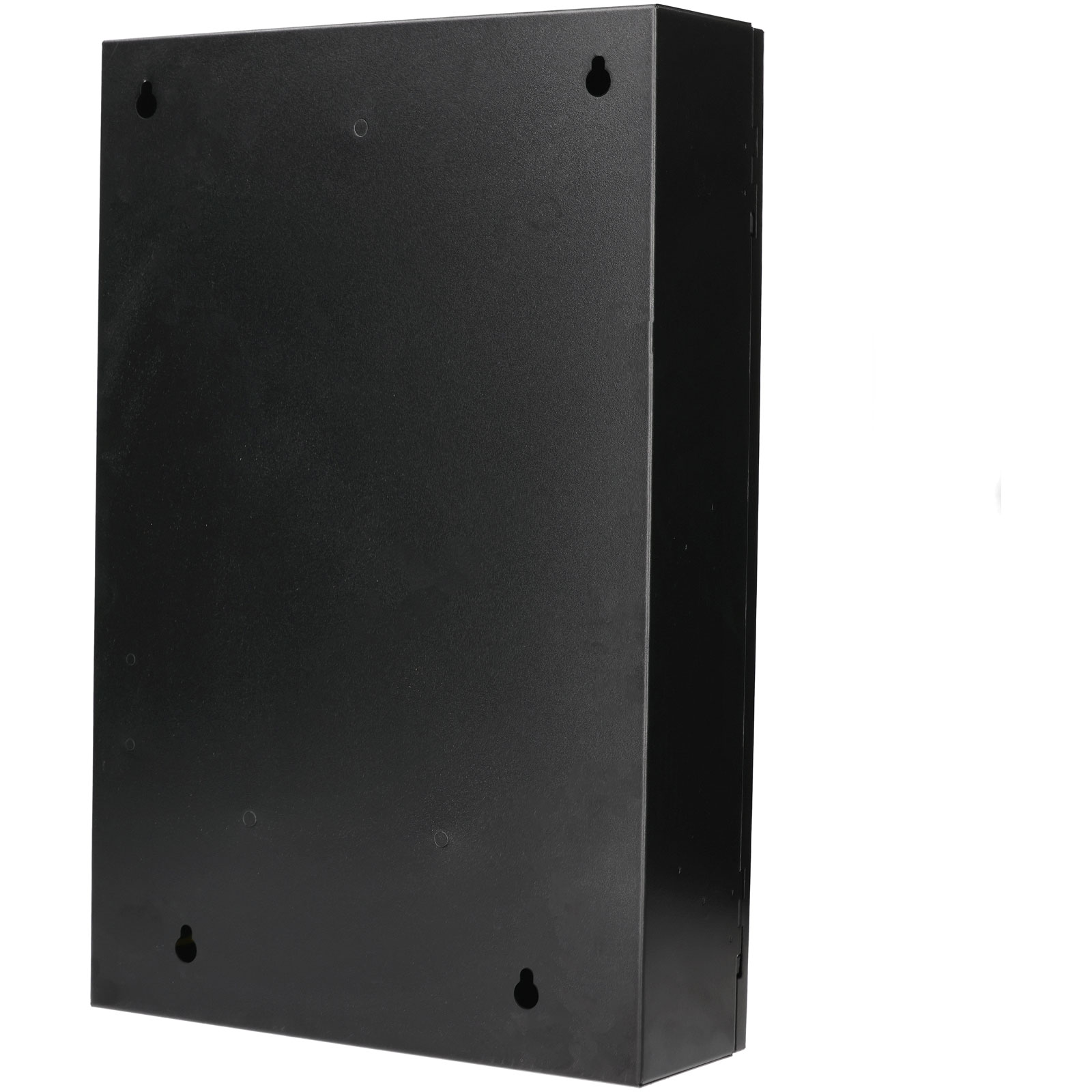

The matt:e ARD-1-100-TP-SPD is a 3-phase connection unit, with a unique 5-pole auto-reset isolator device and built-in Type 2 SPD, suitable for 1 x 100A TPN load.
Simple to install, it provides a dedicated EV connection unit with built in O-PEN® technology that allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1.(iii).
| Colour | Black |
| Dimensions (H x W x D) | 550 x 360 x 120mm |
| Voltage rating | 400V, 3-phase |
| Frequency | 50Hz |
| Max. Load | 100A |
| IP rating | IP4X |
| Material | Mild steel |
| Finish | Powder-coated |
| Warranty | 1 Year |
| Build Type | Pre-configured connection panel |
|---|---|
| IP Rating | IP4X (Indoor) |
| Main Incoming Supply | 3-phase (400V) |
| Maximum Load Current | 100A |
| SPD Included | Yes |
| Terminal Capacity | 25mm² |
