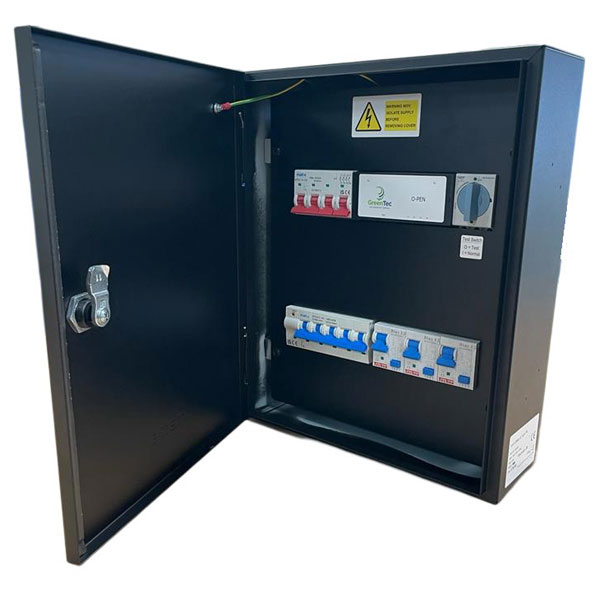

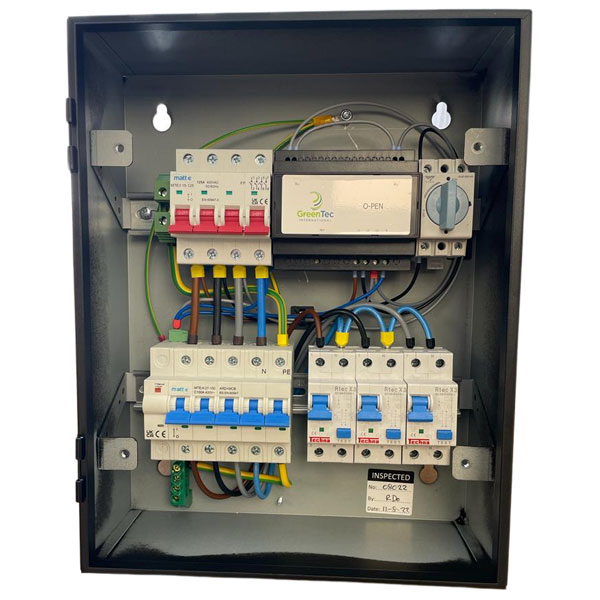

The matt:e ARD Connection centre with O-PEN® and automatic reset 5 pole isolator with 3 x 40A DP RCBOs provides a simple
to install dedicated EV connection centre, with built
in O-PEN® technology, that allows for the
connection of EV charge points to the PME earthing
facility without the use of earth electrodes.
- Built in O-PEN® Protection with auto reset isolator
- NO EARTH ELECTRODES REQUIRED
]
- Facilitates compliance with regulation 722.4.4.1 (iii)
-
Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- For 3 x 40A single-phase loads
- Complete with double pole Type A RCBOs
- Standard 1 Year parts warranty
| Product Description | Matt:e ARD-3-40-R 40A |
| Replenishh Order Code | 65-4284 |
| Supplier Code | ARD-3-40-R |
| Product Type | Connection Unit with Auto reset |
| Imput Volts | 400V 50Hz |
| Max Load | 40amps |
| Cable Entry Facility | Top and Bottom |
| Terminal Capacity | 25mm² |
| Dimensions (H x W x D) | 380mm x 300mm x 120mm |
| Weight | Approximately 7kG |
| Enclosure | Mild Steel Powder Coated |
| Ingress Protection | IP4X |
| Warranty | 1 Year |
| Colour | Black |
| Build Type |
Pre-configured connection centre |
| Main Incoming Supply |
3-phase (400V) |
| Maximum Load Current |
40A |
