matt:e ARD-6-32-M-SPD EV Connection unit, 6x 32A DP MCB + SPD matt:e ARD-6-32-M-SPD EV Connection unit, 6x 32A DP MCB + SPD

matt:e ARD-6-32-M-SPD EV Connection unit, 6x 32A DP MCB + SPD

Order Code: 65-4484
MPN: ARD-6-32-M-SPD
Brand: matt:e
Sign In to submit the first review
Qty Ex VAT
1+ £998.70
Standard factory lead time 7 daysContact us for lead times on larger quantities
1 in stock, despatched same dayBack-order availability date - 01/07/2025

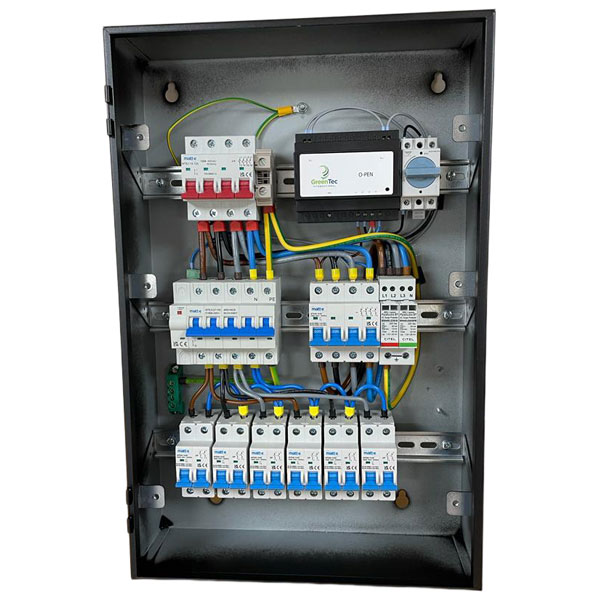

The matt:e ARD-6-32-M-SPD is a 3-phase connection unit, with a unique 5-pole auto-reset isolator device, built-in Type 2 SPD, and 6 x 32A DP MCBs.

Simple to install, it provides a dedicated EV connection unit with built in O-PEN® technology that allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.

Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1.(iii).



ColourBlack
Dimensions (H x W x D)550 x 360 x 120mm
Voltage rating400V, 3-phase
Frequency50Hz
Max. Load63A
IP ratingIP4X
MaterialMild steel
FinishPowder-coated
Warranty1 Year
  • Built in O-PEN® technology
  • No Earth electrodes required
  • Facilitates compliance with regulation 722.411.4.1 (iii)
  • Helps reduce disruptive and costly groundworks
  • Removes the risk of striking buried services
  • Simple wire in wire out connection
  • Complete with Type 2 SPD & 5-pole Auto-reset Isolator
  • Built-in 6 x 32A Double Pole MCBs
  • Mild steel IP4X enclosure
  • Standard 1 Year parts warranty
  • Designed and Built in the UK
  • Matt:e type ARD-6-32-M-SPD

Build Type Pre-configured connection panel
IP rating IP4X (Indoor)
Main Incoming Supply 3-phase (400V)
Maximum Load Current 63A
SPD Included Yes
Terminal Capacity 25mm²

Technical Specification
