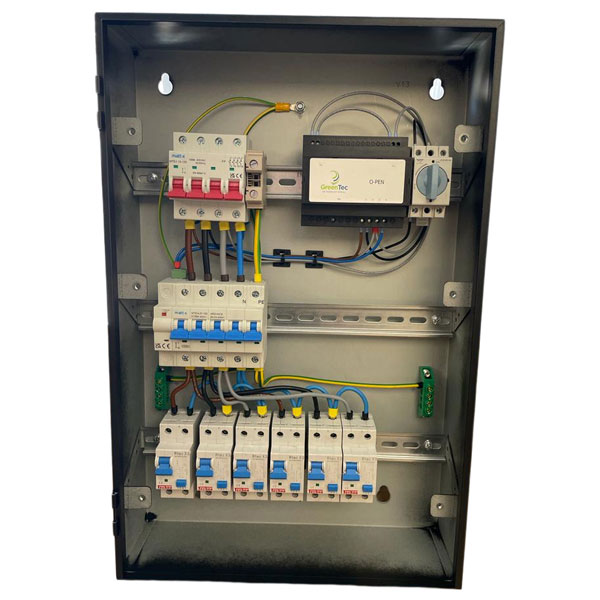

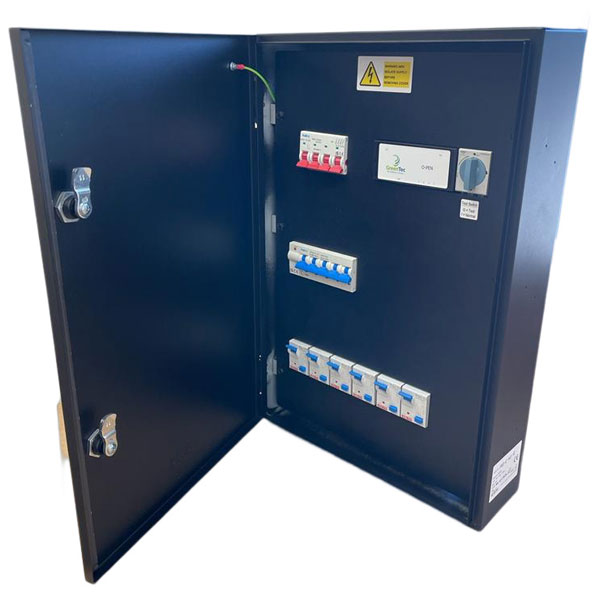

The matt:e ARD Connection centre with O-PEN® and automatic reset 5 pole isolator with 6 x 40A double pole Type A RCBOs provides a simple to install
dedicated EV connection centre, with built in O-PEN®
technology, that allows for the connection of EV charge points
to the PME earthing facility without the use of earth
electrodes.
- Built in O-PEN® Protection with auto reset isolator
- NO EARTH ELECTRODES REQUIRED
- Facilitates compliance with regulation 722.4.4.1 (iii)
-
Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- For 6 x 40A single-phase loads
- Complete with 6 x 40A Type A RCBOs
- Standard 1 Year parts warranty
| Product Description | Matt:e ARD-6-40-R 40A |
| Replenishh Order Code | 65-4285 |
| Supplier Code | ARD-6-40-R |
| Product Type | Connection Unit with Auto reset |
| Imput Volts | 400V 50Hz |
| Max Load | 80A per phase |
| Cable Entry Facility | Top and Bottom |
| Terminal Capacity | 25mm² |
| Dimensions (H x W x D) | 550mm x 360mm x 120mm |
| Weight | Approximately 7kG |
| Enclosure | Mild Steel Powder Coated |
| Ingress Protection | IP4X |
| Warranty | 1 Year |
| Colour | Black |
| Build Type |
Pre-configured connection centre |
| Main Incoming Supply |
3-phase (400V) |
| Maximum Load Current |
80A |
