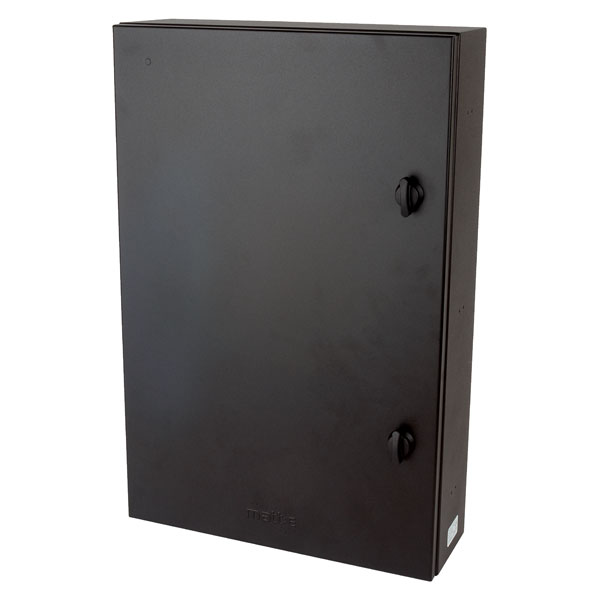

The EV-3-20-TP-M from matt:e is simple, single dedicated connection unit with built in O-PEN technology, which allows for the connection of 3x 20A TPN EV charge points to the existing PME earthing facility.

The unit incorporates a 5-pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671, 2018 Amendment 1 2020 Regulation 722.411.4.1 (iii).

The O-PEN technology does not require earth rods or measuring electrodes to function correctly.

• Dedicated connection unit for 3x 20A EV charge points
• Built in O-PEN technology
• No Earth electrodes required
• Phase-loss protection
• Built in 5-pole mains isolator with manually resettable shunt trip
• Simple wire-in, wire-out connection
• 3x 20A TPN MCBs
• Designed and built in the UK
• Matt:E type EV-3-20-TP-M
