| Qty | Ex VAT |
|---|---|
| 1+ | £826.80 |

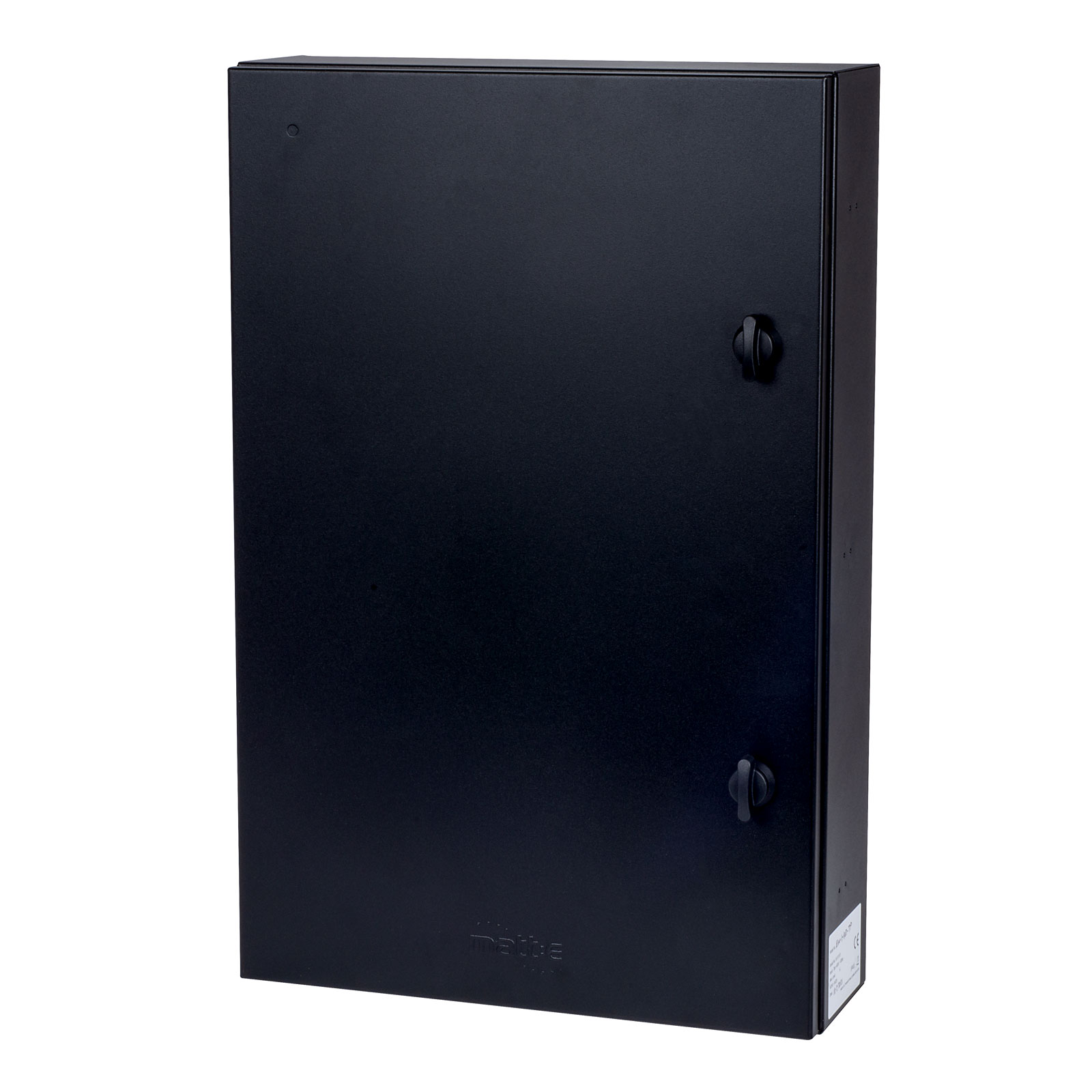

The EV-1-100-TP from matt:e is a simple, single dedicated connection unit with built-in O-PEN technology which allows for the connection of one 100A 3-phase load to an existing PME earthing facility.
The unit incorporates a 5-pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault. It is manually resettable in line with BS:7671.
The matt:e O-PEN technology does not require earth rods or measuring electrodes to function correctly.
| Colour | Black |
| Dimensions (H x W x D) | 550 x 360 x 150mm |
| Finish | Powder-coated |
| Frequency | 50Hz |
| Guarantee | 1 year |
| IP rating | IP4X |
| Material | Mild steel |
| Voltage rating | 415V, 3-phase |
| Auto Reset Function | No |
|---|---|
| Build Type | Pre-configured connection centre |
| Incoming Supply Rating | 100A |
| IP rating | IP4X (Indoor) |
| Load Curtailment | No |
| Main Incoming Supply | 3-phase (415V) |
| Protection Included | Terminals only |
