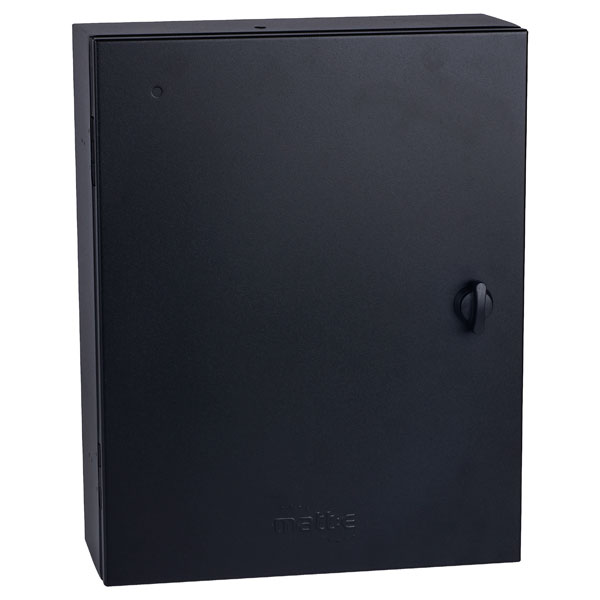

The EVU-3-63-ISL from matt:e is a simple, single dedicated connection unit with built in O-PEN technology, which allows for the connection of 3 x 63amp single-phase loads to the existing PME earthing facility.

The unit incorporates a 5-pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671:2018. Amendment 1: 2020. Regulation 722.411.4.1 (iii).

The O-PEN technology does not require earth rods or measuring electrodes to function correctly.

• Built-in O-PEN technology
• No Earth electrodes required
• Phase-loss protection
• Built-in 5-pole mains isolator with manually resettable shunt trip
• Simple wire-in, wire-out connection
• 3x 63A double-pole isolators
• Designed and built in the UK
• Matt:E type EVU-3-63-ISL
