matt:e SP-EVCP-B 1PH 32A Connection Unit Type B RCD & 32A MCB 1x 1PH 32A EVC matt:e SP-EVCP-B 1PH 32A Connection Unit Type B RCD & 32A MCB 1x 1PH 32A EVC

matt:e SP-EVCP-B 1PH 32A Connection Unit Type B RCD & 32A MCB 1x 1PH 32A EVC

Order Code: 65-3718
MPN: SP-EVCP-B
Brand: matt:e
Sign In to submit the first review

Discontinued

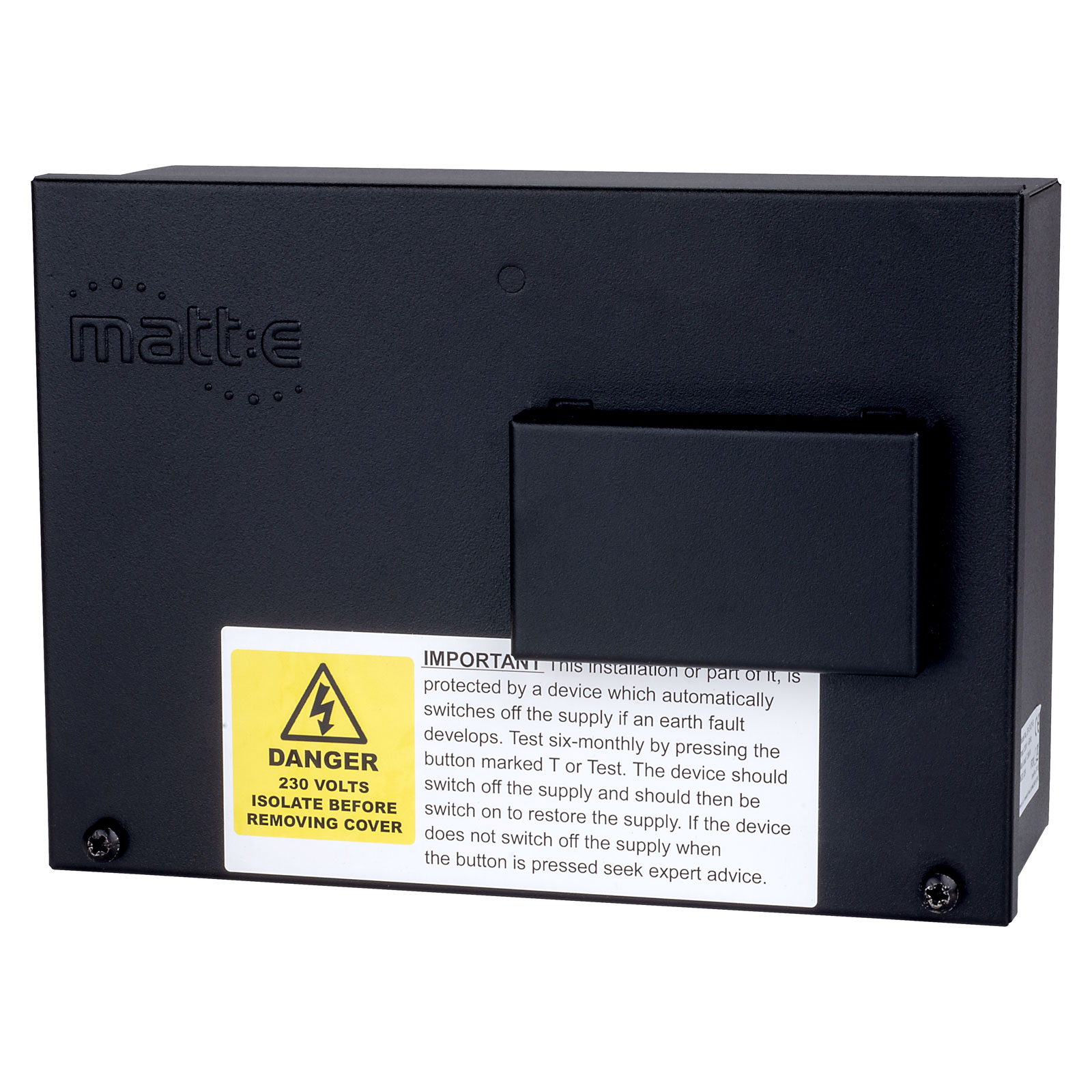

The SP-EVCP-B from matt:e is a simple, single connection unit, which allows for the connection of one 32A single-phase charge point to an existing PME earthing facility.

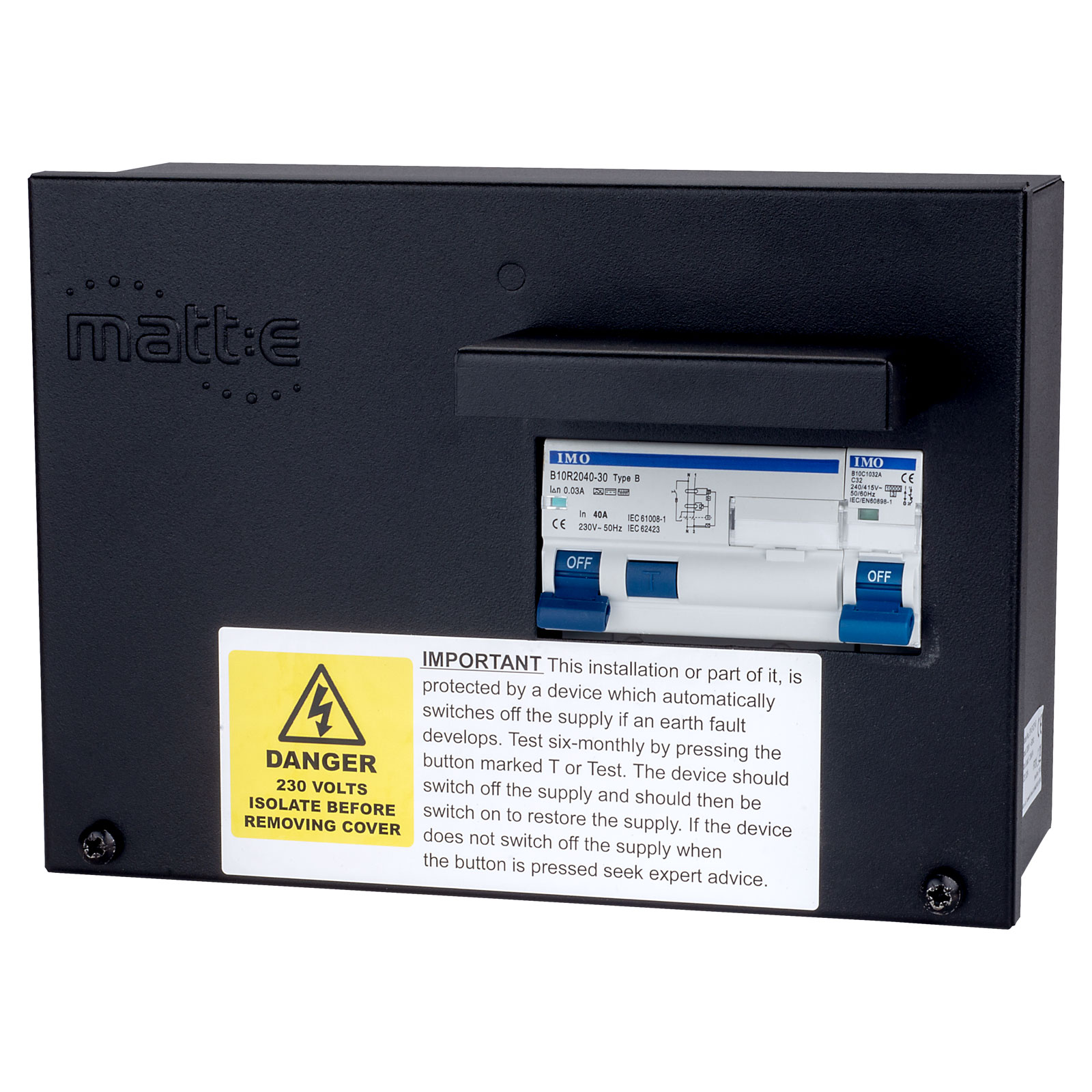

The unit incorporates matt:e's unique monitoring device, which disconnects all poles including CPC in the event of a fault, plus a built-in double-pole Type B RCD and 32A MCB.

The matt:e SP-EVCP-B technology does not require earth rods or measuring electrodes to function correctly.


  • Built in matt:e technology
  • No Earth electrodes required
  • BS:7671 18th edition compliant
  • Suitable for 1x 32A load
  • Built-in Type B RCD & 32A MCB
  • Standard 3 year parts warranty
  • Simple wire-in, wire-out connection
  • Standard mild steel IP4X enclosure
  • Designed and built in the UK
  • Matt:E type SP-EVCP-B
ColourBlack
Dimensions (H x W x D)232 x 169 x 111mm
FinishPowder-coated
Frequency50Hz
Guarantee3 years
IP ratingIP4X
MaterialMild steel
Voltage rating230V, single-phase

This unit is designed for use in domestic dwelling applications where a single phase PME supply is feeding Electric Vehicle Chargers. It should NOT be used in premises with 3 phase supplies.
Click Here for 3-Phase versions.
Build Type Pre-configured connection centre
Incoming Supply Rating 32A
IP rating IP4X (Indoor)
Load Curtailment No
Main Incoming Supply Single-phase (230V)
Protection Included MCB & Type B RCD/RCCB

Technical Specification
