| Qty | Ex VAT |
|---|---|
| 1+ | £207.95 |

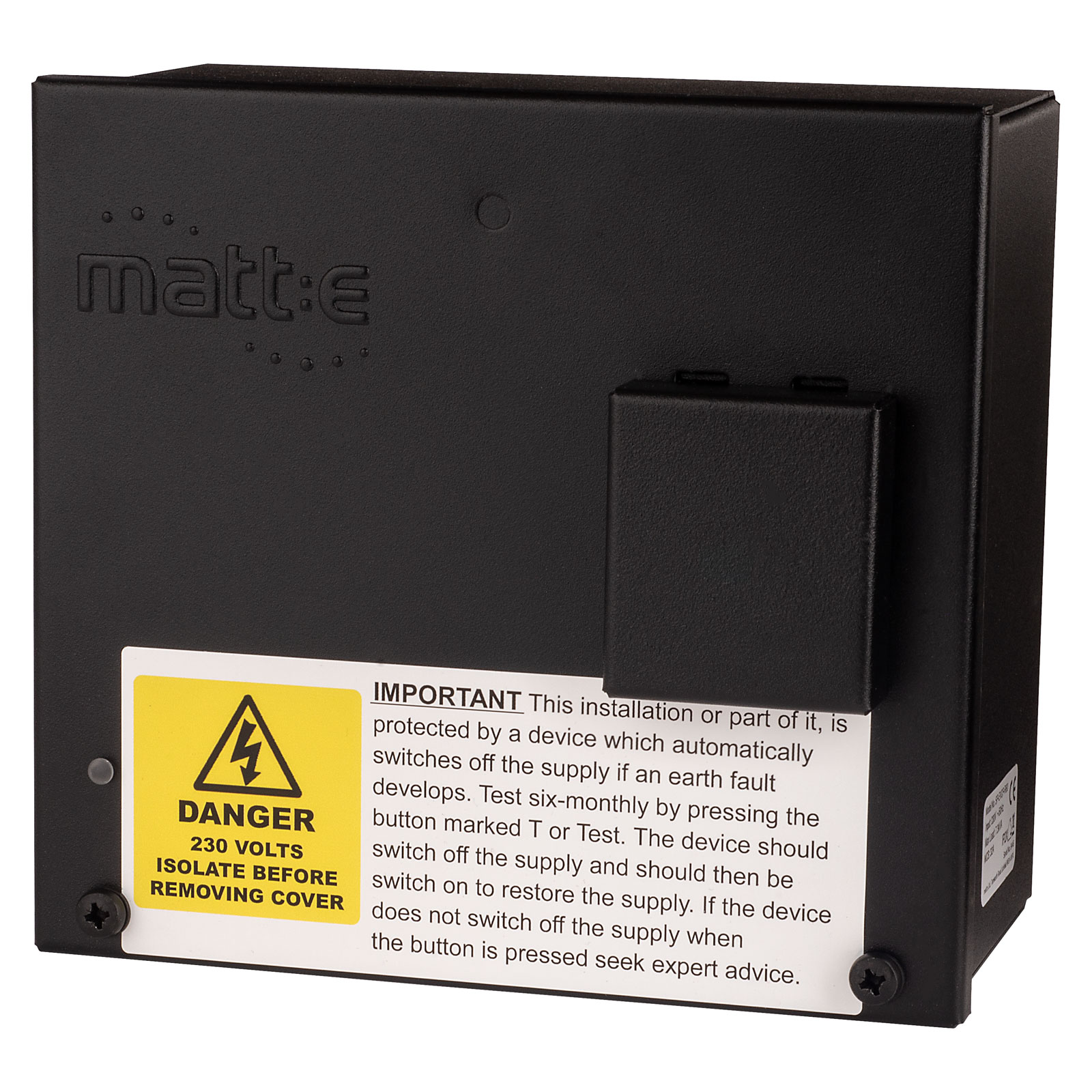

The SP-EVCP-RC60-B from Matt:E incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv) and has the additional functionality for load curtailment in line with Regulation 722.311.20, isolating the charge point from the supply once the house consumption rises above the pre-set limit and automatically restores the power to the charge point when the load falls back to a satisfactory level.
It creates a simple single connection centre that allows for connection to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation while offering a safe alternative for your work force.
| Product Description | Matt:E SP-EVCP-RC60 Single Phase 32A Type A RCBO House Consumption Limiting 60A |
| Replenishh Order Code: | 65-4109 |
| Supplier Code: | SP-EVCP-RC60 |
| Product Type: | EV House Consumption Limiting 60A Connection Centre |
| Incoming Supply Rating | 32A |
| MCB Included | No |
| RCBO/RCCB Included | Yes - Type A RCBO |
| Max Terminal Entry | Input: 2.5mm² to 25mm², Output: 2.5mm² to 10mm² |
| Warranty: | 3 years |
| Colour | Black |
| Weight | Approx. 3kg |
| Dimensions (H x W x D) | 169 x 182 x 111mm |
| Voltage Rating | 230V, single phase |
| Frequency | 50Hz |
| Material | Mild steel, powder-coated |
| IP Rating | IP2X (indoor) |
| Number of ways | 1 |
| Current Rating | 32A |
|---|---|
| IP Rating | IP2X (Indoor) |
| Voltage Rating | Single-phase (230V) |
| RCBO | Yes |
| MCB | No |
| Surge Protected | No |
| Build Type | Pre-configured connection centre |
| Load Curtailment | Yes |
| Protection Included | Type A RCBO |
