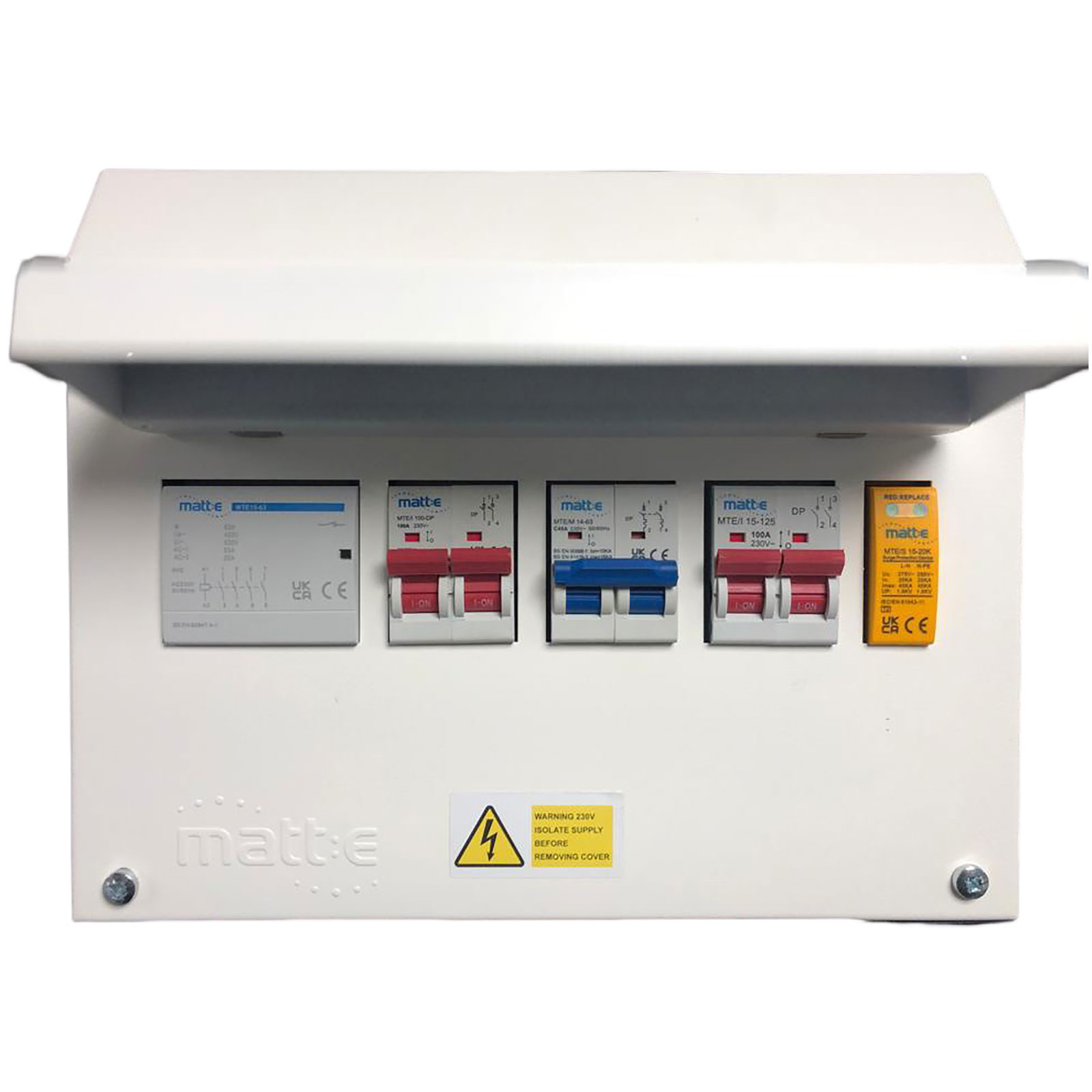

matt:e SP-I-SPD SP EV unit with Type 2 SPD and isolator

Order Code: 65-4492
MPN: SP-I-SPD
EAN-13: 5060767051627
Brand: matt:e
Sign In to submit the first review
Qty Ex VAT
1+ £217.10
Please sign in to add to your basket.
Standard factory lead time 7 daysContact us for lead times on larger quantities
Available to back orderBack-order availability date - 22/05/2025

The matt:e SP-I-SPD is a single-phase connection unit, with Automatic Reset, PEN Fault Protection and built-in Type 2 SPD.

The single-phase protection device unit offers a simple, cost effective, compliant, solution for PEN fault protection. It allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.

Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1 (iv).


ColourWhite
Dimensions (H x W x D)225 x 275 x 106mm
Voltage rating230V, single phase
Frequency50Hz
Max. Power Rating7.4kW
IP ratingIP2X
MaterialMild steel
FinishPowder-coated
Warranty1 Year
  • Built in PEN fault protection
  • No Earth Electrodes required
  • Facilitates compliance with regulation 722.411.4.1 (iv)
  • Helps reduce disruptive and costly groundworks
  • Removes the risk of striking buried services
  • Simple wire in wire out connection
  • Built-in Type 2 SPD
  • Automatic Reset
  • Suitable for single phase loads up to 7.4kW
  • Standard 1 Year parts warranty
  • Designed and Built in the UK
  • Matt:e type SP-I-SPD


Build Type Pre-configured connection centre
IP rating IP2X (Indoor)
Main Incoming Supply Single-phase (230V)
Max. Power Rating 7.4kW
Protection Included PEN Fault, Auto-reset
SPD Included Yes

Technical Specification
