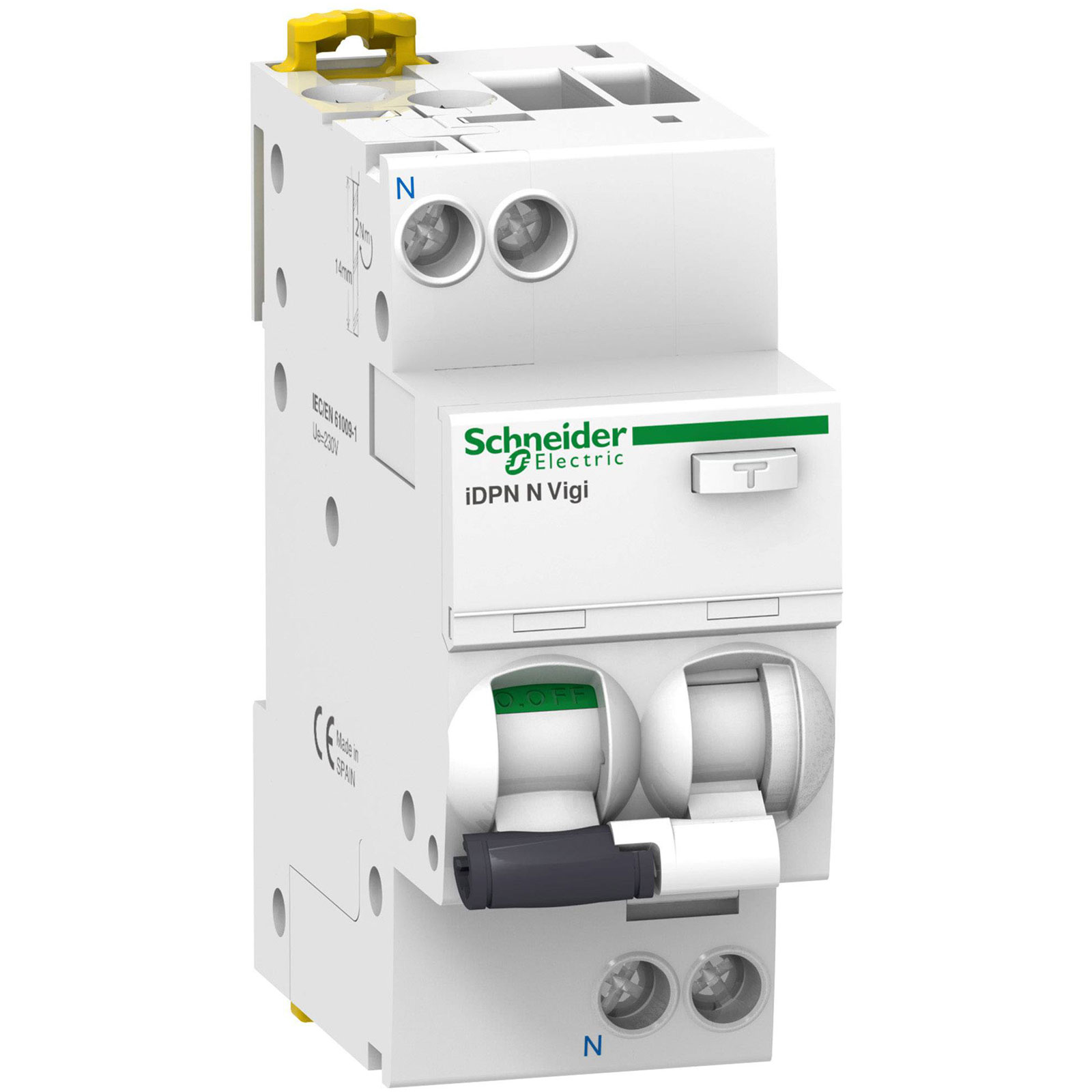

Schneider Electric manufactures the A9D02610 RCBO, which is a residual current circuit breaker with over-current protection, rated at 10 A and 0.01 A (10 mA) sensitivity for 240 V. It combines the functions of a residual current device (RCD) and a miniature circuit breaker (MCB) to provide comprehensive protection against electrical faults. Typical applications include residential and commercial installations where it safeguards both circuits and connected devices from electrical hazards like ground faults and short
| Type |
RCBO |
| Depth |
73mm |
| Differential current rating |
0.01A |
| Dim |
(W x H x D) 36 x 85 x 73 mm |
| Height |
85mm |
| Nominal current |
10A |
| Nominal current - rounded value |
10A |
| Nominal voltage |
240V |
| Nominal voltage (details) |
220-240 V/AC 50 Hz |
| Number of pins |
2 |
| Release characteristics |
C |
| Switch-off capacity |
6kA |
| Width |
36mm |
