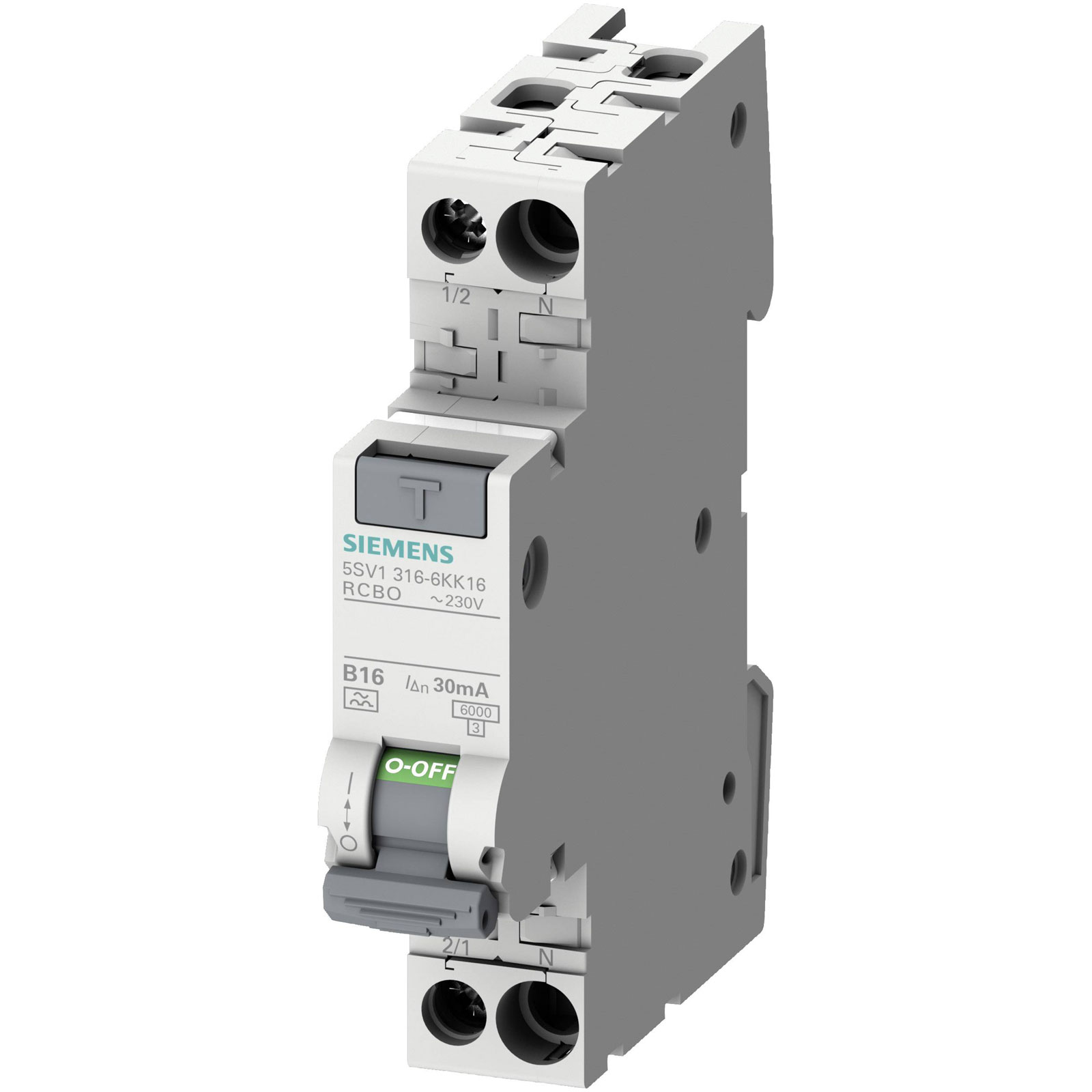

The Siemens 5SV1316-6KK16 is an RCBO that offers circuit protection by combining residual current and overcurrent capabilities. Rated at 16 A with a 0.03 A sensitivity and operating at 230 V, it ensures electrical safety in domestic and commercial installations. This device is typically used to protect circuits from short circuits, overloads, and earth faults.
| Type |
RCBO |
| No. of Poles |
1 |
| Anti-nuisance tripping version |
TRUE |
| Built-in depth |
70mm |
| Concurrently switching neutral conductor |
TRUE |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
70mm |
| Differential current rating |
0.03A |
| Dim |
(W x H x D) 18 x 90 x 70 mm |
| Disconnection characteristic |
Undelayed |
| Height |
90mm |
| Leakage current type |
A |
| Misc Attribute |
Switch-off characteristics: Instantaneous |
| Nominal current |
16A |
| Nominal current - rounded value |
16A |
| Nominal voltage |
230V |
| Nominal voltage (details) |
230V |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Operating voltage |
230V |
| Overvoltage category |
2 |
| Pollution degree |
2 |
| Rated Current |
16A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4 |
| Rated insulation voltage Ui |
253V |
| Rated short-circuit breaking capacity according to EN 61009 |
6 |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
15kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6 |
| Rated voltage |
230V |
| Release characteristic |
B |
| Release characteristics |
B |
| RoHS-compliant |
Yes |
| Surge current capacity |
1kA |
| Switch-off capacity |
6kA |
| Voltage type |
AC |
| Weight |
0 |
| Width |
18mm |

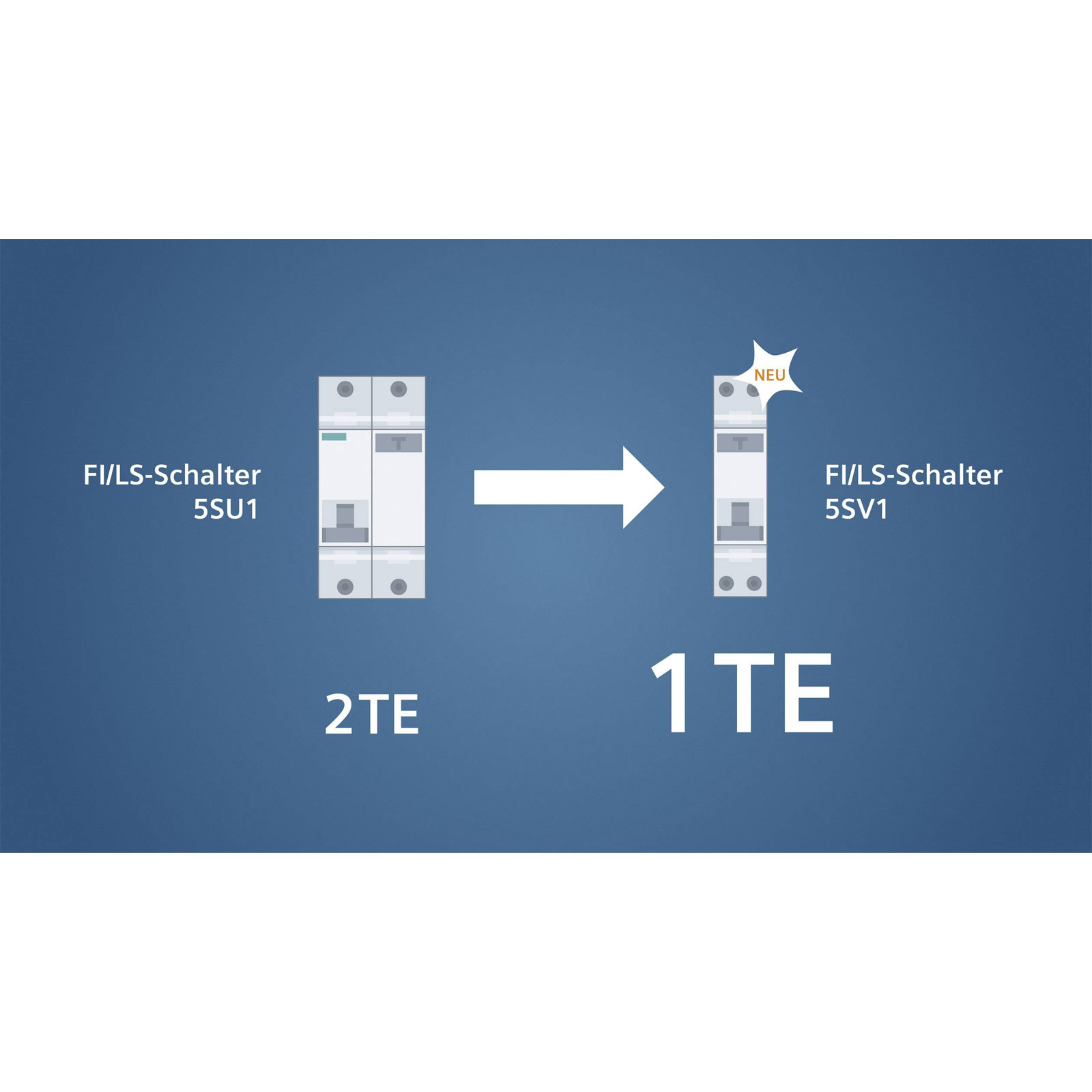

| Width in number of modular spacings |
1 |
| With interlocking device |
TRUE |
