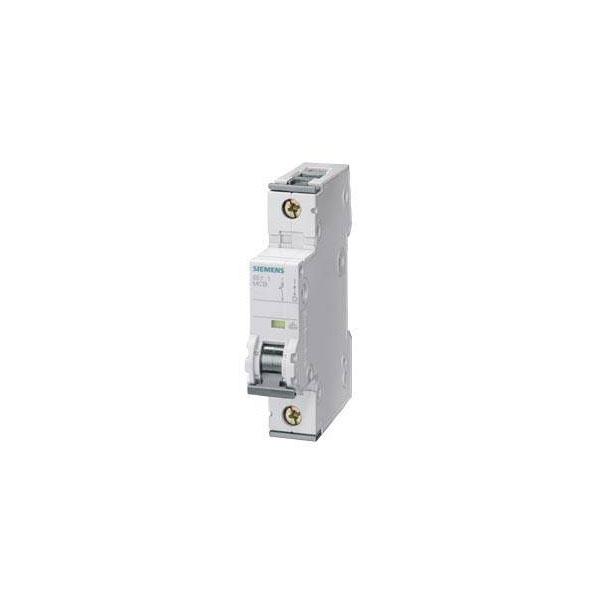

The Siemens 5SY4106-7 is a 1-phase circuit breaker designed for a 6 A current rating. It features a voltage capacity of 440/230 volts, providing dependable protection for electrical circuits. Typical applications include residential and commercial electrical installations where safeguarding against overloads and short circuits is essential.
Type |
Circuit breaker |
No. of Poles |
1 |
Additional equipment possible |
TRUE |
Built-in depth |
70mm |
Concurrently switching neutral conductor |
FALSE |
Current limiting class |
3 |
Degree of protection (IP) |
IP20 |
Depth |
76mm |
Dim |
(W x H x D) 18 x 90 x 76 mm |
Frequency |
50-60MHz |
Height |
90mm |
Model |
1-phase |
Nominal current |
6A |
Nominal current - rounded value |
6A |
Nominal voltage (details) |
230/400V AC |
Number of poles (total) |
1 |
Number of protected poles |
1 |
Operating class |
3 |
Operating voltage |
440V AC |
Overvoltage category |
3 |
Pollution degree |
3 |
Rated Current |
6A |
Rated impulse withstand voltage Uimp |
4 |
Rated insulation voltage Ui |
440V |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
10kA |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
35kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
35kA |
Rated voltage |
400V |
Release characteristic |
C |
Release characteristics |
C |
RoHS-compliant |
Yes |
Switch-off capacity |
5kA |
Voltage type |
AC |
Weight |
0 |
Width |
18mm |
Width in number of modular spacings |
1 |
