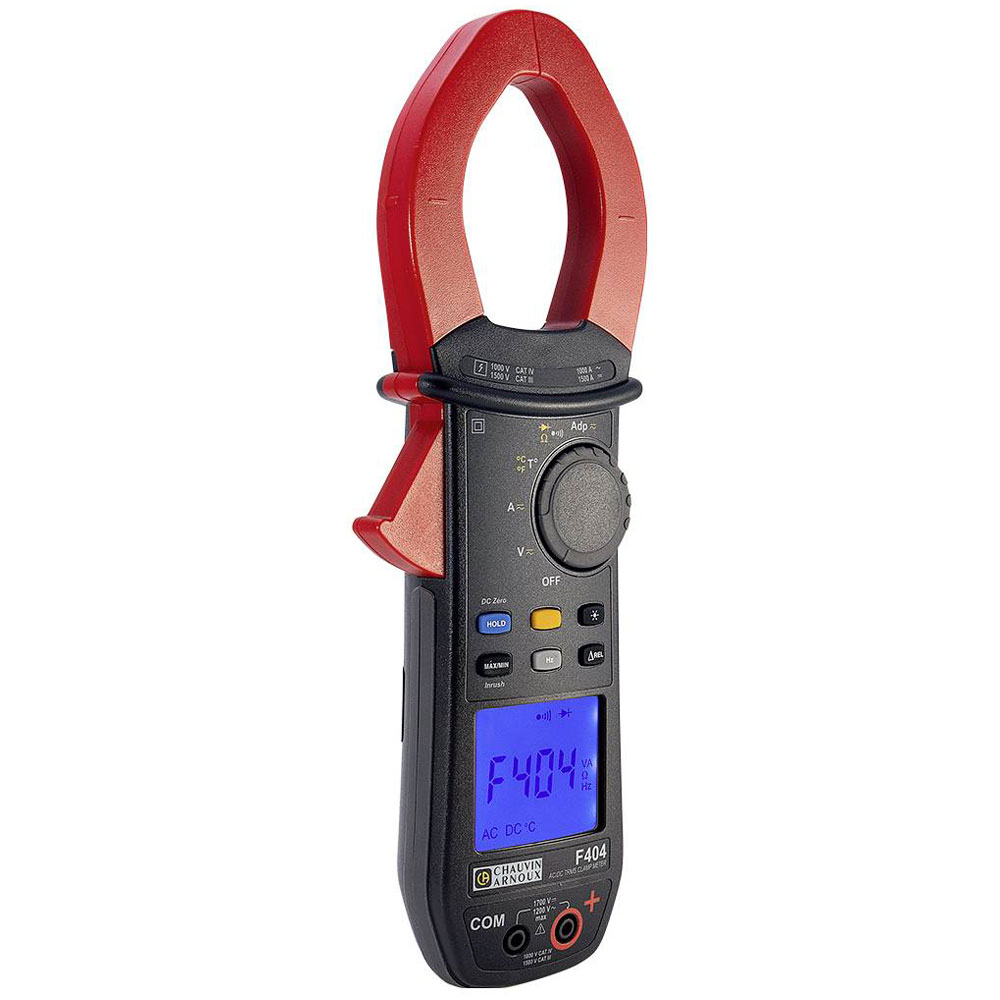

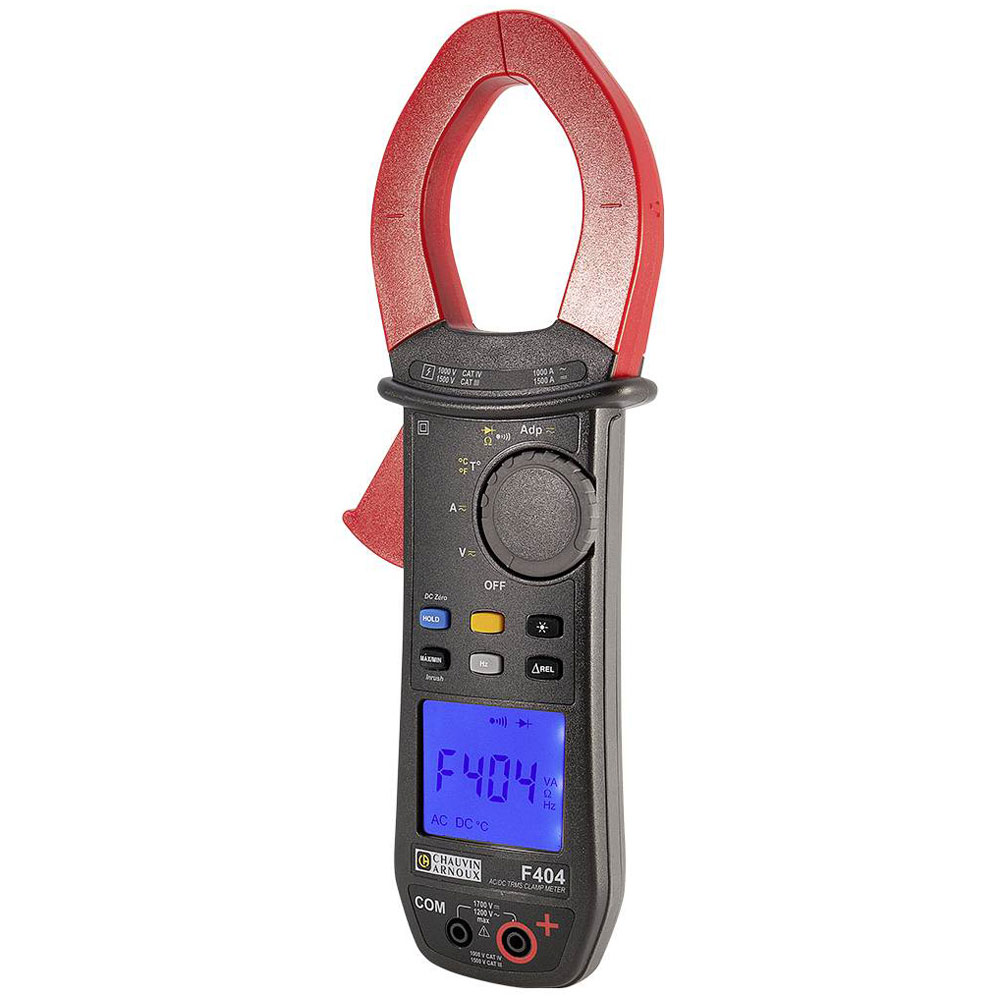

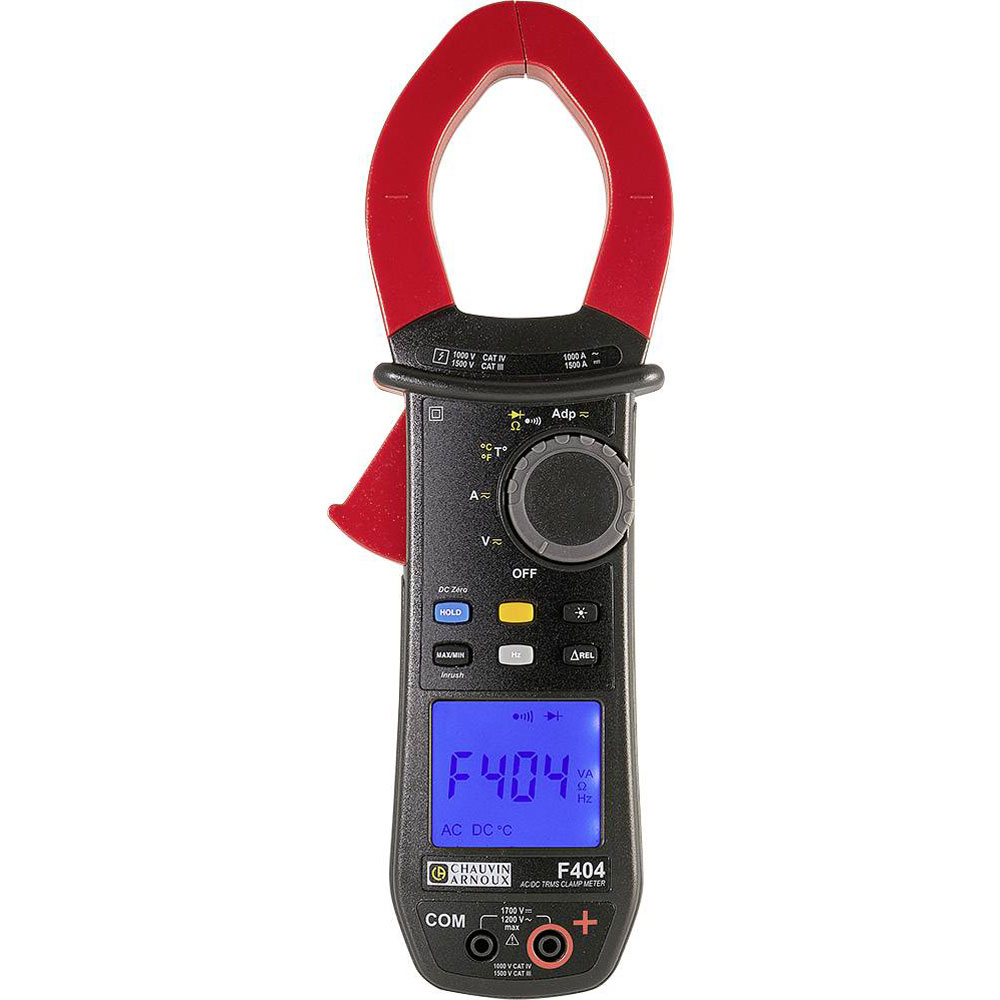

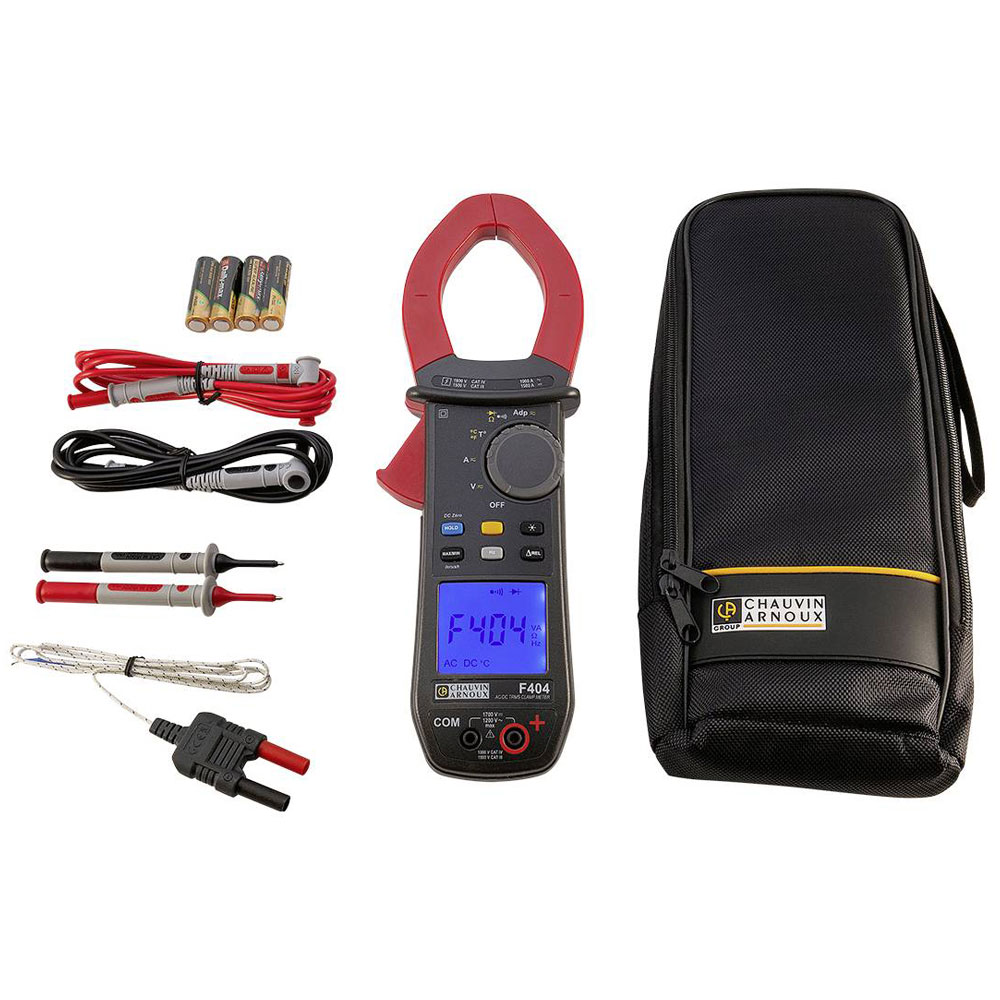

The Chauvin Arnoux F404 Clamp Meter is a digital, splashproof (IP54) device suitable for both CAT III 1500 V and CAT IV 1000 V environments. It features a high-resolution display with 10,000 counts, making it ideal for precise voltage, current, and frequency measurements. This versatile instrument is commonly used for electrical diagnostics and safety checks in industrial and commercial settings.
| Type |
Clamp meter |
| A AC reading range (min.) |
0.25A |
| Amperage reading range AC (max.) |
1500A |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Dim |
(L x W x H) 92 x 41 x 272 mm |
| Display |
Digital |
| Display (counts) |
10000 |
| Height |
272mm |
| Length |
92mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
F404 |
| Opening range of current clamps |
48mm |
| Plastic free packaging |
Plastic-free packaging |
| Reading range - resistance |
0.1 Ω to 99.99kΩ |
| Temperature |
-60 °C to 1000°C |
| V AC reading range (max.) |
1700V |
| V AC reading range (min.) |
0.15V |
| Voltage DC reading range (max.) |
1700V |
| Voltage reading range DC (min.) |
0.15V |
| Weight |
600g |
| Width |
41mm |
