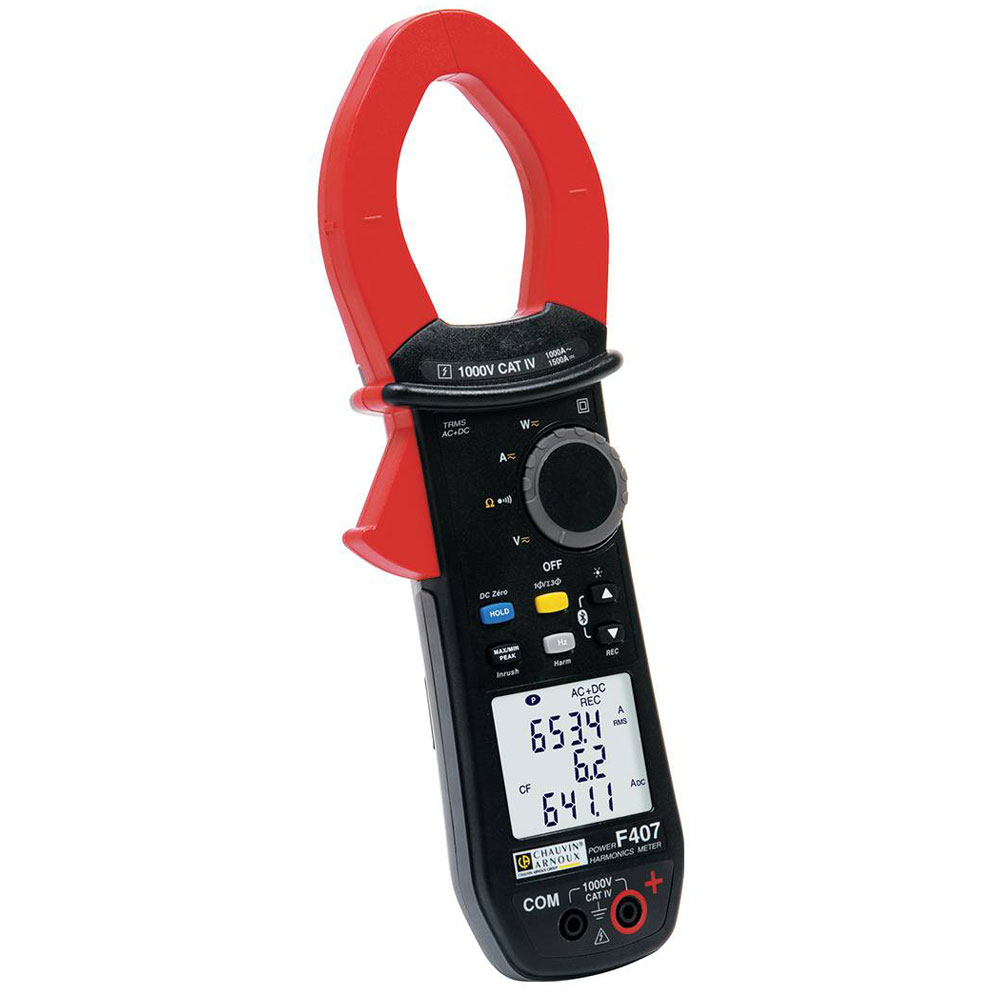

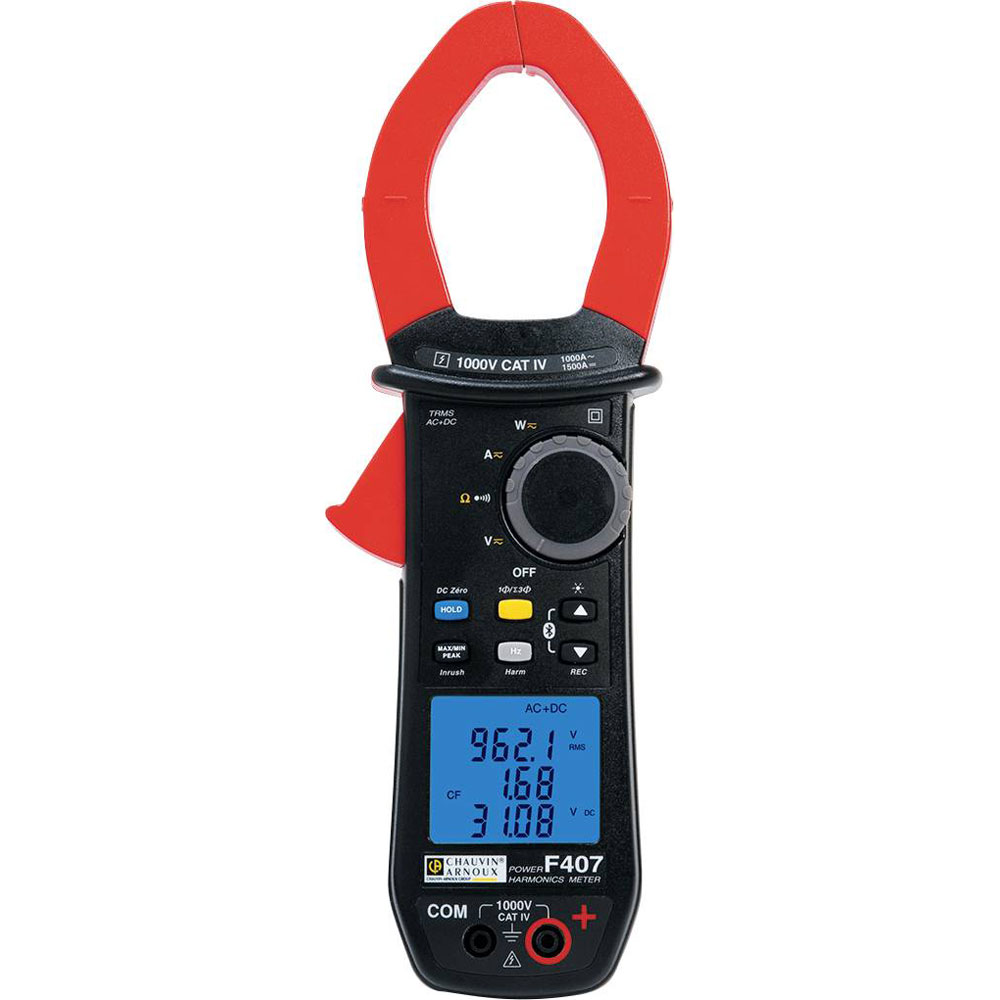

The Chauvin Arnoux F407 clamp meter is a digital multimeter and data logger with a display count of 10,000. It is designed for CAT IV 1000 V applications, making it ideal for measuring high voltage and current safely and accurately. This versatile device can be used for voltage testing, current measurement, and frequency testing in both industrial and electrical environments.
| Type |
Clamp meter |
| A AC reading range (min.) |
0.25A |
| A DC reading range (max.) |
1500A |
| AC resistance |
10MΩ |
| Amperage reading range AC (max.) |
1000A |
| Amperage reading range DC (min.) |
0.25A |
| Basic accuracy |
1% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| DC Resistance |
10MΩ |
| Dim |
(L x W x H) 272 x 92 x 41 mm |
| Display |
Digital |
| Display (counts) |
10000 |
| Frequency Range |
5 Hz - 2 kHzHz |
| Frequency reading range |
5 Hz - 20 kHz |
| Height |
41mm |
| Interfaces |
none |
| Length |
272mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
F407 |
| Opening range of current clamps |
48mm |
| Power supply (details) |
4 x AA battery |
| Reading category |
CAT IV 1000 V |
| Reading range - resistance |
0.1Ω - 100kΩ |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
0.15V |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.15V |
| Weight |
600g |
| Width |
92mm |
