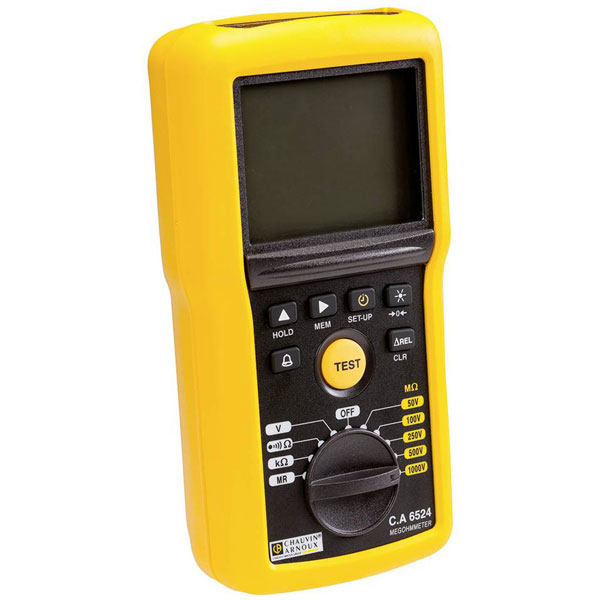

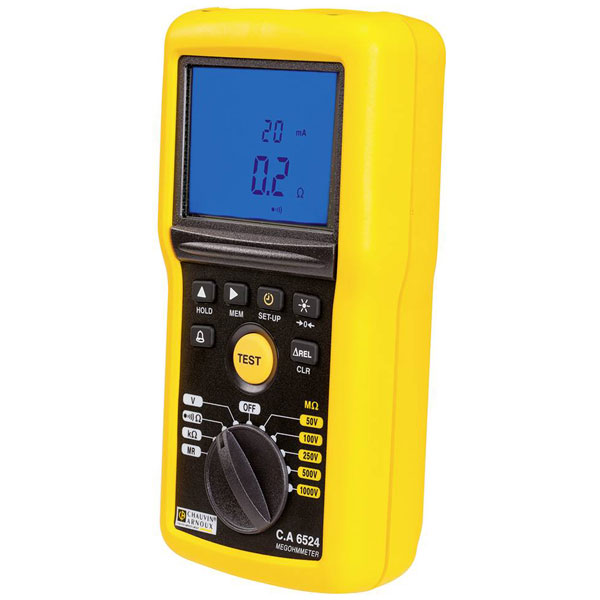

The Chauvin Arnoux C.A 6524 is an advanced insulation tester designed for testing electrical resistance at multiple voltage levels, including 50 V, 100 V, 250 V, 500 V, and 1000 V, up to 200 GO. Its primary features include accurate resistance testing and electrical isolation assessment, making it an ideal tool for checking the integrity of various electrical installations and equipment. Common applications for this ohmmeter include ensuring safe operation in industrial settings and routine
| Type |
Insulation tester |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Continuity testing |
0 - 100 Ω |
| Dim |
(L x W x H) 60 x 211 x 108 mm |
| Display Type |
Digital (LCD) |
| Frequency Range |
15.3 Hz - 399.9 Hz |
| Height |
108mm |
| Insulation resistance (max.) |
200 GΩ |
| IP rating |
IP54 |
| Length |
60mm |
| Max. frequency |
399.9Hz |
| Min. frequency |
15.3Hz |
| Reading category |
CAT IV 600 V |
| Reading range - resistance |
0 - 3999 Ω |
| Voltage reading range (max.) |
399.9V |
| Voltage reading range (min.) |
0.3V |
| Weight |
850g |
| Width |
211mm |
