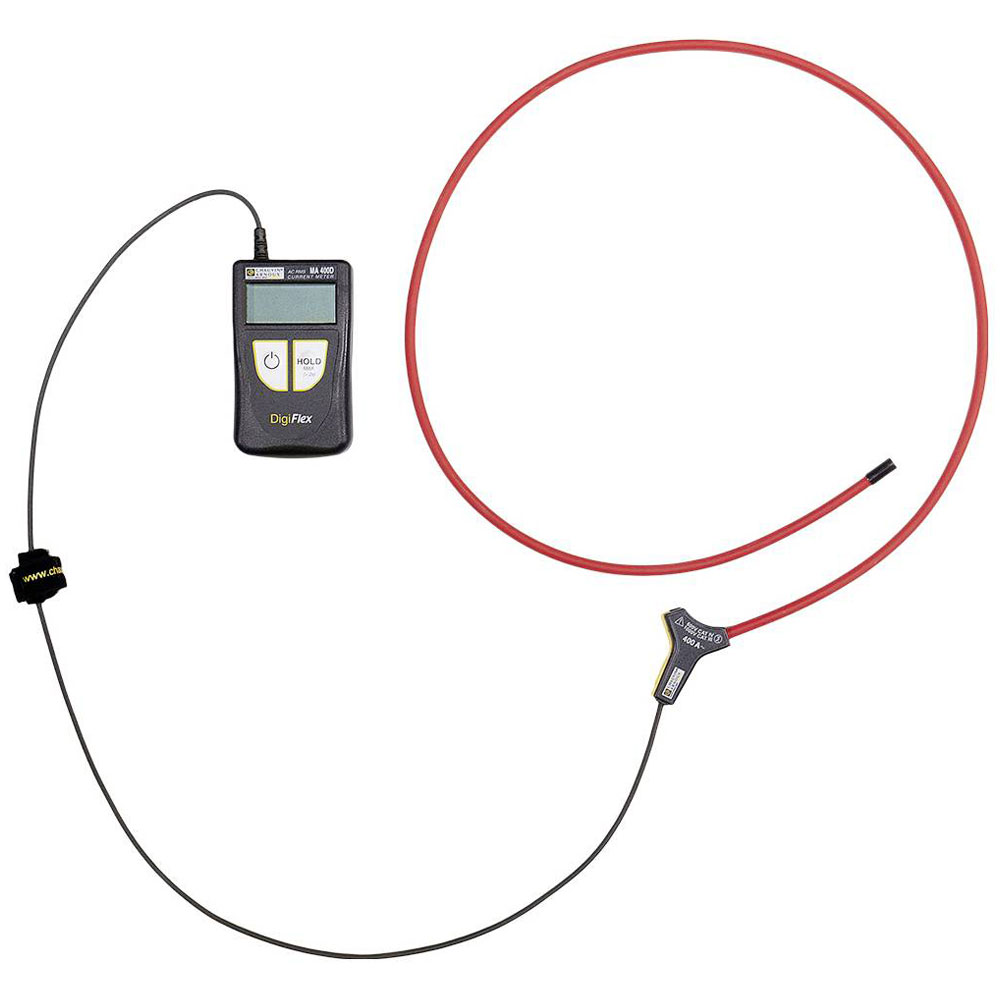

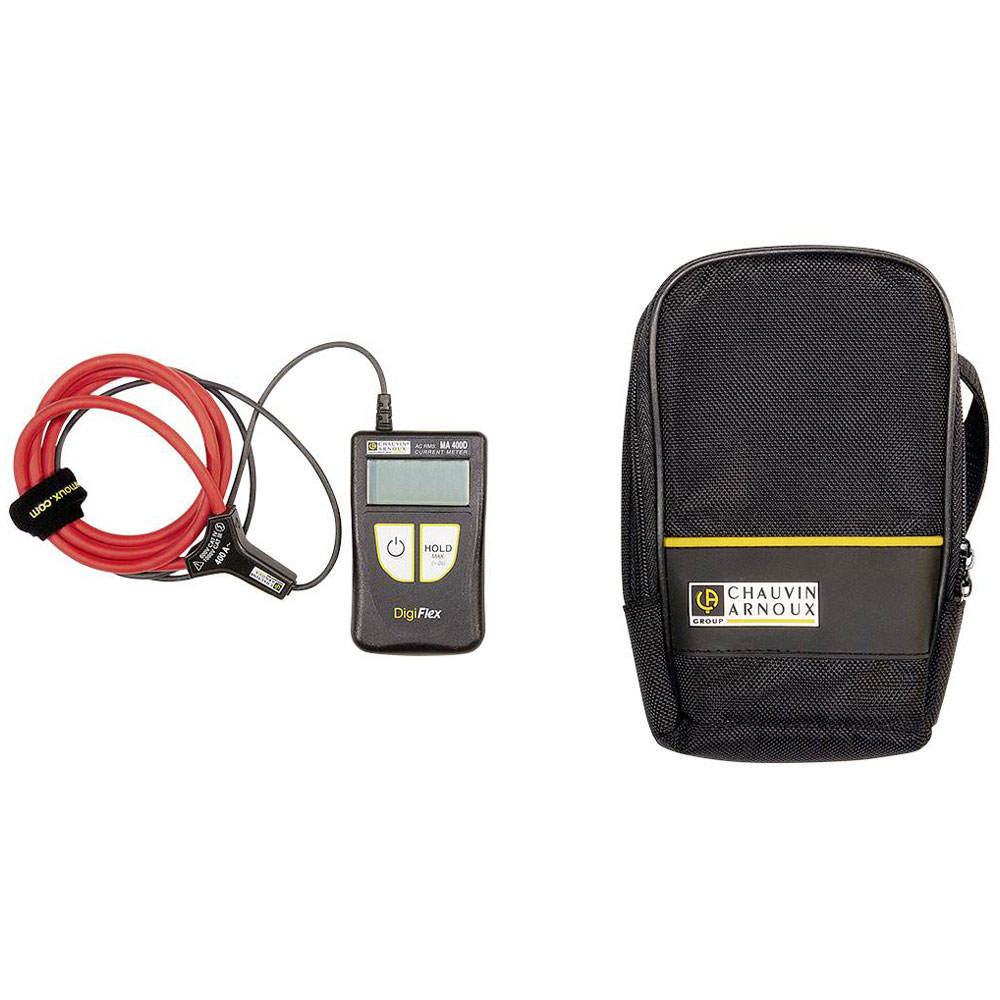

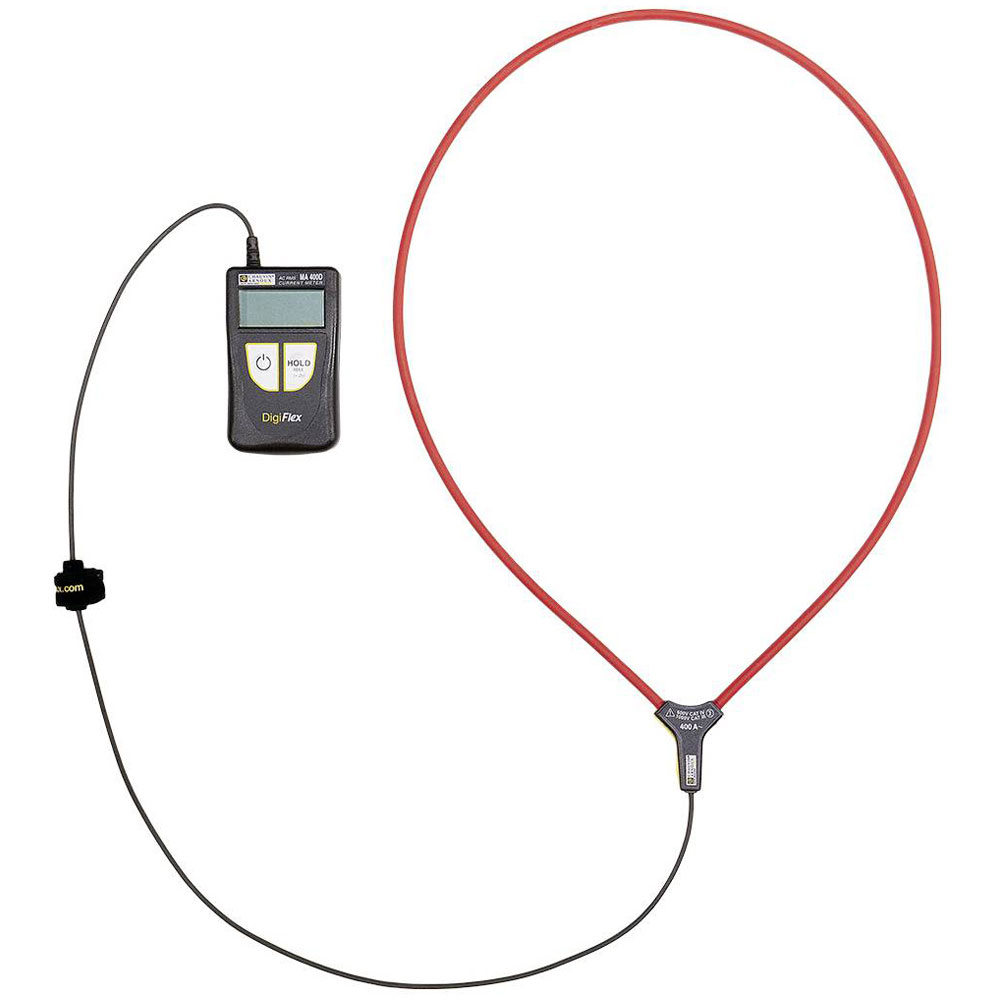

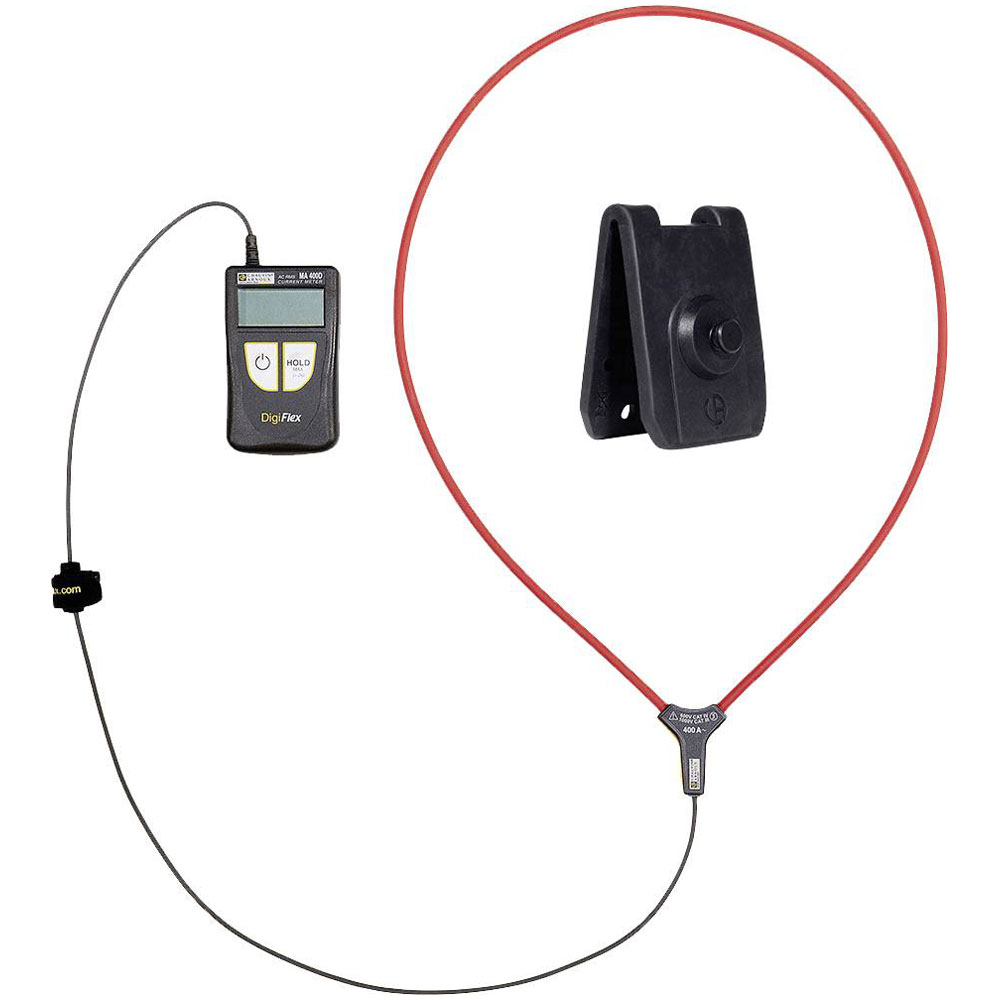

The Chauvin Arnoux MA 400D-1000 Clamp Meter is a digital multimeter designed for CAT IV 600 V environments, featuring a 4000-count display. It serves as a versatile tool for measuring voltage, current, and frequency. Typical applications include electrical diagnostics and testing in industrial and commercial settings.
| Type | Clamp meter |
|---|---|
| A AC reading range (min.) | 0.02A |
| Amperage reading range AC (max.) | 400A |
| Calibrated to | Manufacturer's standards (no certificate) |
| Current reading | AC |
| Dim | (L x W x H) 20 x 60 x 100 mm |
| Display | Digital |
| Display (counts) | 4000 |
| Height | 100mm |
| Length | 20mm |
| Measurement type (details) | True RMS |
| Misc Attribute | MA 400D-1000 |
| Opening range of current clamps | 320mm |
| Plastic free packaging | Plastic-free packaging |
| Reading category | CAT IV 600 V |
| Weight | 130g |
| Width | 60mm |
