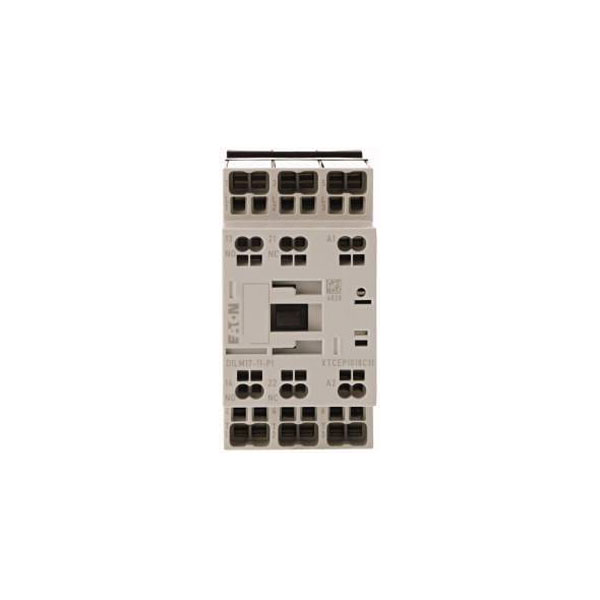

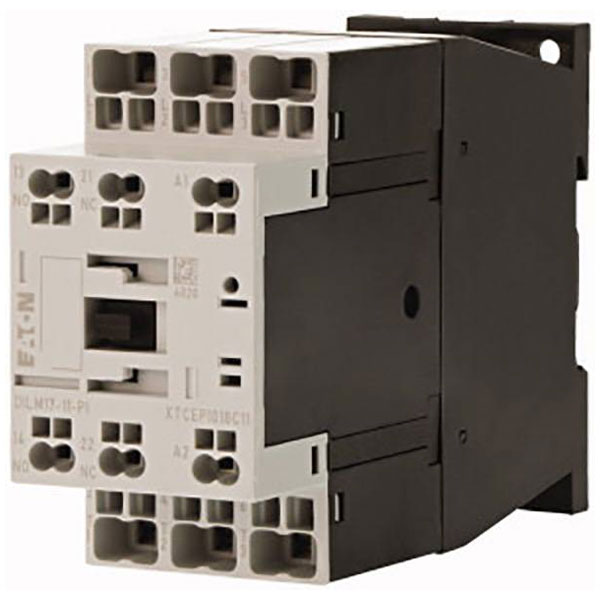

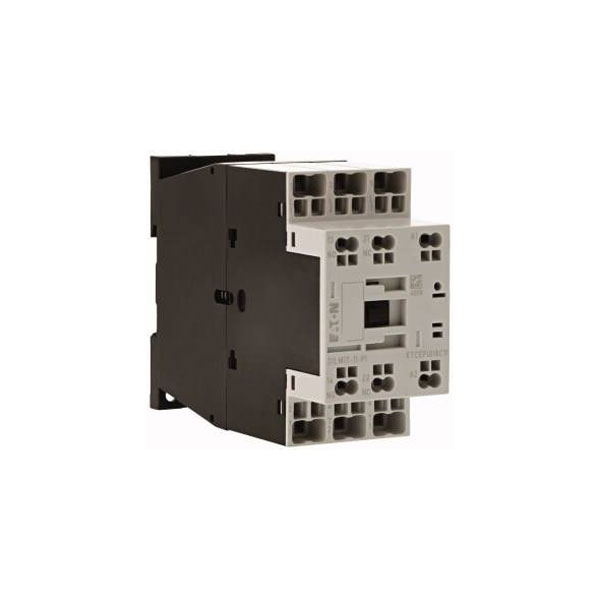

The Eaton contactor, model DILM17-11(RDC24)-PI, is an electrical device designed for controlling electrical circuits, suitable for use with motors up to 7.5 kW. Featuring a current rating of 17 A, it is ideal for industrial and commercial motor control applications. Typically employed in automated systems, this contactor ensures efficient and reliable switching.
| Type |
Electrical contactor |
| Auxiliary contact type |
1 maker |
| Connection |
Push-in connector |
| Contact type |
3 makers |
| Control voltage (max.) |
24V AC |
| Control voltage range |
24 V AC (max) |
| Current load |
17A |
| Max. temperature |
+60°C |
| Min. temperature |
-25°C |
| Misc Attribute |
DILM17-11(RDC24)-PI |
| Mounting Type |
DIN rail |
| Power |
7.5kW |
| RoHS-compliant |
Yes |
