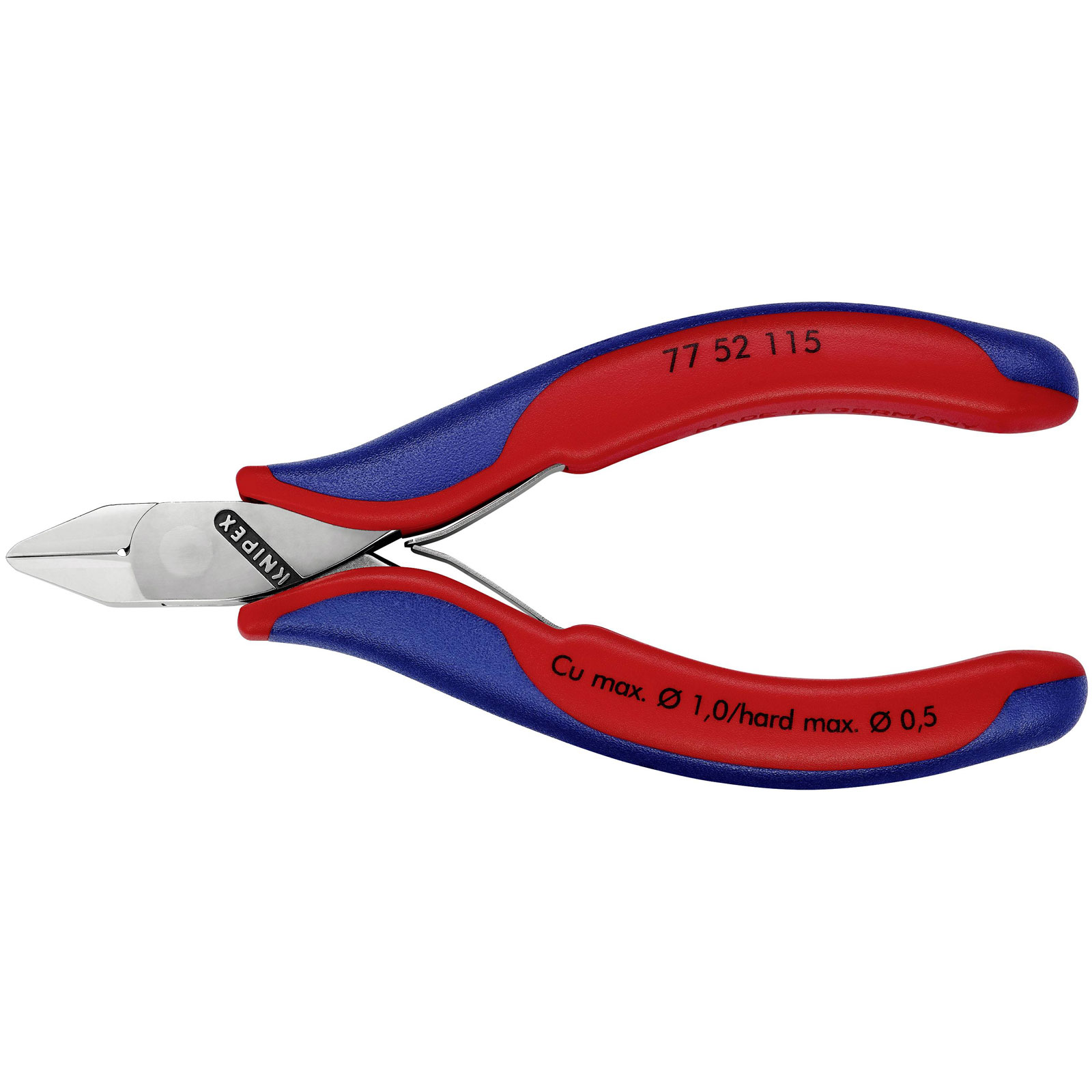

77 52 115 Electronics Diagonal Cutter
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. pointed, flat head, with small bevel.
Cutting capacities medium hard wire (diameter): Ø 0.8 mmCutting capacities hard wire (diameter): Ø 0.5 mmCutting capacities soft wire (diameter): Ø 0.3 – 1 mmJaw length (B): 14 mmJaw thickness (joint) (D): 7.5 mmHead width (A): 11 mm
| Type |
Side cutter |
| DIN standard |
DIN ISO 9654 |
| Edge hardness |
60HRC |
| Height |
48mm |
| Length |
115mm |
| Manufacturer part # |
77 52 115 |
| Material |
Tool steel |
| Rack size |
483 mm (19") |
| Range of use |
Electrician |
| Weight |
75g |
| Width |
71mm |
| Wire hardness (max.) hard wire |
0.5mm |
| Wire hardness (max.) medium wire |
0.8mm |
| Wire hardness (max.) soft wire |
1mm |
