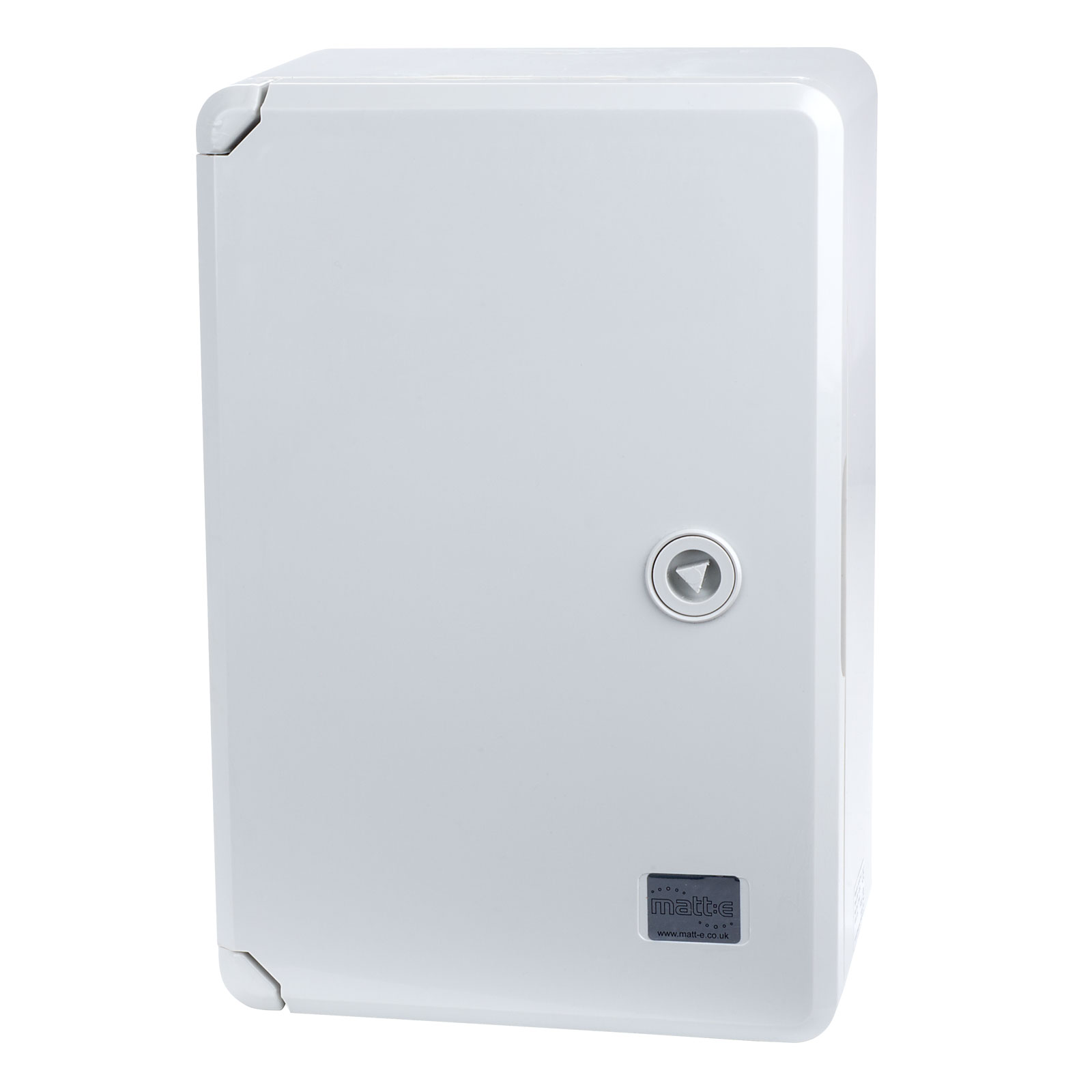

matt:e IP-EVCP-M Single Phase 32A Unit DP MCB matt:e IP-EVCP-M Single Phase 32A Unit DP MCB

matt:e IP-EVCP-M Single Phase 32A Unit DP MCB

Order Code: 65-3781
MPN: IP-EVCP-M
Brand: matt:e
Sign In to submit the first review

Discontinued

The IP-EVCP-M from Matt:E is an IP65 rated, simple single connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation.

It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv).


  • Single connection unit for 1x 32A charge point
  • Built in Matt:E technology
  • No Earth electrodes required
  • Built-in 32A MCB
  • Simple wire in wire out connection
  • Designed and built in the UK
  • Standard 3 Year parts warranty
  • BS:7671 2018 Amendment 1 2020 compliant
  • Matt:E type IP-EVCP-M
ColourLight grey
Dimensions (H x W x D)300 x 200 x 129mm
Frequency50Hz
Guarantee3 years
IP ratingIP65
MaterialABS-HB flame retardant plastic
Voltage rating230V, single-phase

This unit is designed for use in domestic dwelling applications where a single phase PME supply is feeding Electric Vehicle Chargers. It should NOT be used in premises with 3 phase supplies.
Click Here for 3-Phase versions.
Build Type Pre-configured connection centre
Incoming Supply Rating 32A
IP rating IP65 (Outdoor)
Load Curtailment No
Main Incoming Supply Single-phase (230V)
Protection Included MCB only
